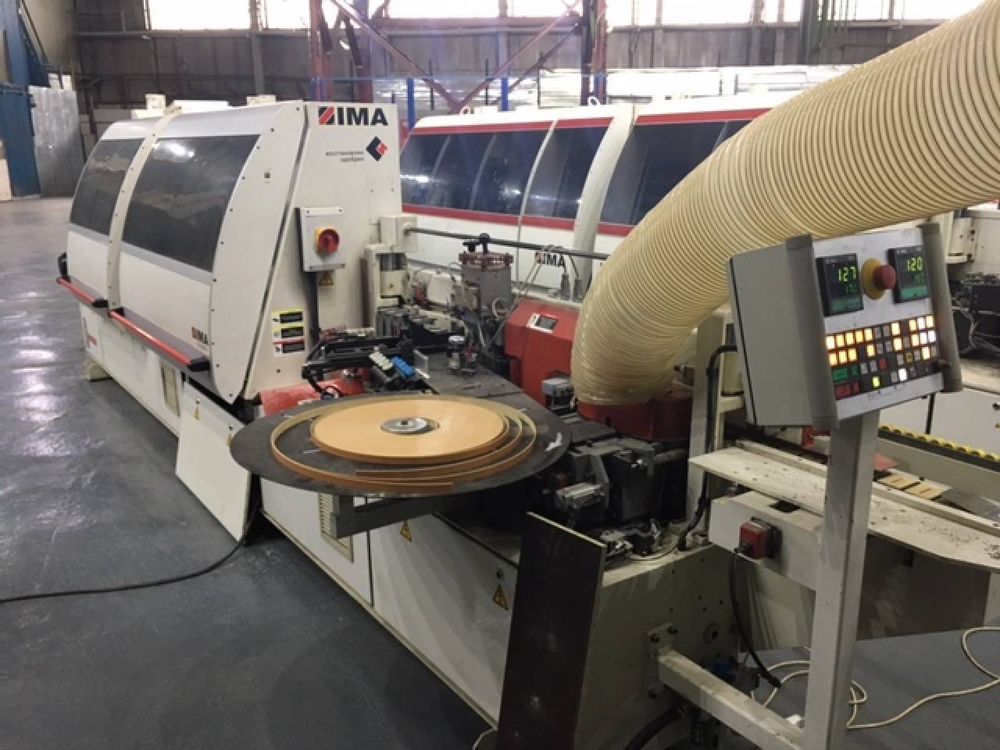

Ima Advantage 5616

Min/max thickness of roll material: 0.4-3mm
Min/max thickness of slatted material: 0.4-12 mm
Min/max processing height: 8-60mm
Control system: SIEMENS SPS AG 95
Lower drive chain feed speed (fixed): 16 m/min
Pressure system with rubberized rollers
Manually adjustable feed zone
Vertical planer 08.376 4.5 kW x 3, 12.00 rpm
Quartz lamps for heating the end of the plate material
Adhesive unit (hot melt adhesive) 283.1513
Manually adjustable edge clamping zone
Holder for 1 reel
Cutting unit: 08.415 0.66 kW x2, 12000 rpm
Rough milling unit: 08.0555 1 kW x2, 12000 rpm
Multifunctional profile unit: 08.346 0.66 kW x2, 12000 rpm
Profile scraper: 08.519
Glue scraper 08.50
Polishing unit 08.612 0.25 kW x 2, 1500 rpm
