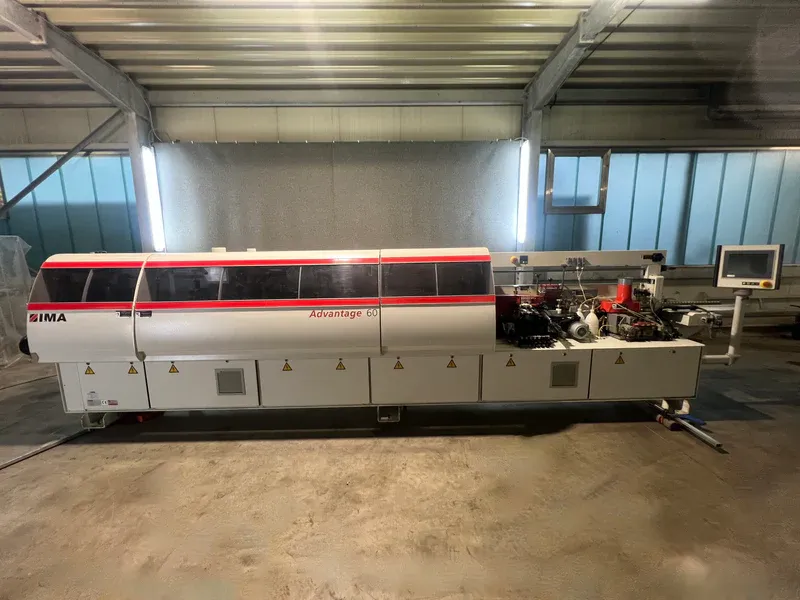

Ima Advantage 60

Single-sided edge banding machine
Technical Data Workpiece :
Workpiece length min. 150 mm
Workpiece thickness min. 8 mm
12 mm with profile scrapers
max. 40 mm with copying function
max. 60 mm without copying function
at max. workpiece thickness of 25 mm min. 65 or 150 mm
Smallest workpiece 65 x 300 mm
150 x 150 x 19 mm
Machining allowance per workpiece edge 0 to 5 mm
observe max. chip removal cross-section
Workpiece shape rectangular
Material particle board MDF
Surface material direct coating melamine resin paper foil veneer
Laterally protruding coating material 0 mm

Technical Data Edge Material:
Roll material paper edges and plastic edges 0.3 to 3.0 mm
Veneer edges 0.5 to 3.0 mm
Maximum edge cross-section 150 to 180 mm2
Cut-to-length edge strips 3.0 to 8.0 mm with change motor on the MFA
Maximum strip cross-section 520 mm2
Edge height min. 12 mm
Edge height max. 65 mm
Maximum top edge overhang 2 mm
Edge profiles paper edge approx. 0.4 mm chamfer 15° plastic edge up to 3.0 mm radius depending on tool strip up to 8 mm flush milling

Technical Data Machine:
Constant workpiece projection 35 mm plus edge thickness from the chain track
Maximum trimming cross-section 520 mm2
Pass-through width min. 65 mm at 35 mm projection
Minimum workpiece length in feed direction 150 mm
Basic height top edge of chain track 900 mm
Unit side in feed direction left
Pneumatic connection approx. 7 to 8 bar
Control voltage 24 V DC / 230 V AC
Permissible control cabinet temperature +10 to +35 °C

Basic machine equipment:
Base frame with integrated electrical installation
Drive for workpiece transport feed speed 16 m/min
Transport chain 80 mm wide 60 mm long
Top pressure system two rows of rubberized rollers electronic height adjustment digital display of workpiece thickness
Unheated stop ruler horizontally adjustable by hand
PC control touchscreen graphical interface easy program creation integrated
PLC electronic path control program memory up to 1000 programs
Safety and protection devices according to CE
Soundproof enclosures for trimming and milling units
Extendable support rail approx. 700 mm
Including mounting material

Painting:
Base machine and covers grey-white structured
Units dust grey RAL 7037 structured and smooth
Safety covers signal red RAL 3001 structured
Motors black semi-gloss

Units and Equipment:
Space reserve for release agent application
Space reserve for jointing milling 2 x 3.0 kW
Heater for preheating the workpiece edge

Gluing unit 283.1513:
Oil bath gear glue application 0.8 l 60 mm high
Quick Lock System for hot melt or PU glue single roller and strip magazine roller diameter 800 mm
main pressure roller 5 post-pressure rollers pre-installation extension glue application volume 1 liter 3 x 400 W with temperature control
Pre-installation PUR pre-melting unit 283.204 for 310 g cartridges


Trimming unit 08.415
pneumatically swiveling 0° or 8° 2 motors 660 W 400 V 200 Hz 12000 rpm 2 HM trimming saw blades 160 x 3.5 x 22 Z 36 frequency converter with electronic motor brake

Multi-processing unit 08.346
Chamfer or radius milling corner copying front and rear pneumatic movements horizontal
and vertical automatic changeover thin and thick edge manual positioning X Y Z
with digital displays 2 motors 660 W 12000 rpm HSK tool holder max. working speed approx. 16 m/min

Profile scraping unit 08.519
Plastic edges quarter-round profiles HM scrapers horizontal and vertical sensing extraction nozzle chip collection box

Scraping unit 08.50
Removal of glue residues 2 cutting plates 2 air nozzles for cleaning

Buffing and polishing unit 08.612
2 motors 0.25 kW polishing wheels 40 x 200 x 18 mm pneumatically disengageable

Jointing milling unit 08.376
2 motors each 3.0 kW climb and counter milling calibration grooving rebating profiling
mechanical digital displays extraction hood Ø 120 mm

Control ICOS open TS
PC-based control system integrated PLC touch screen operation program memory up to 1000 programs
EtherCat communication panel PC 12 inch TFT display protection class IP65 front operating system Windows CE with TwinCat PLC

Electrical Data:
Mains voltage 3 N PE 400 / 230 V 50 Hz loadable neutral conductor RCD protection circuit not applicable

Scope of delivery Documentationm :
Machine labeling German
Spare parts catalog CD Rom German English French Spanish Italian
Operating instructions German paper and CD Rom
