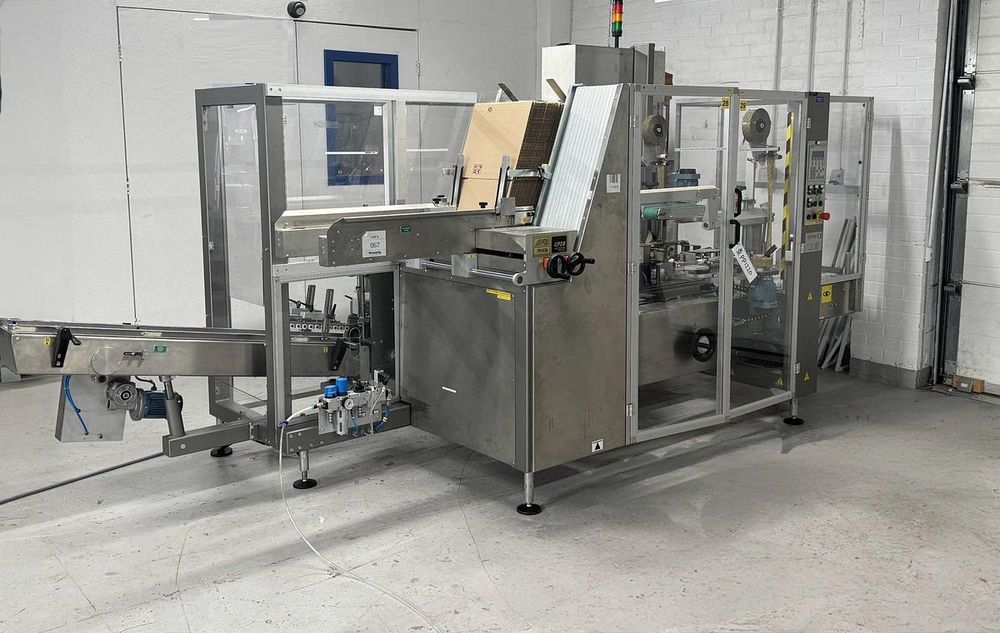

Ima BFB CP-28, Automatic Case Packer

Technical specs:
Automatic case packer equipped
with pre-stacking unit allowing to accommodate
high incoming speeds of the individual
product / boxes to be packed
into cases and built with adjustable,
horizontal flat case magazine.

Output up to 8 cases per minute within following min / max case sizes:
Length: 220mm to 600mm
Width: 120mm to 400mm
Height: 120mm to 350mm

This CP-28 BA example is additionally fitted with following:
· Infeed belt conveyor adjustable 90mm to 245mm
· Automatic product pusher into case
· Adjustable case opening and former station
· Case closure by tape with 2 taping heads
· Control panel with Siemens S7 PLC and Siemens HMI

This machine complies with CE standards (EC standards’ compliant)
Installed power: 2.8 kW
Compressed air: 6/8 Bar

Machine’s size:
L: 5000mm x W: 1850mm x H: 1900 mm
Weight: 750kg
