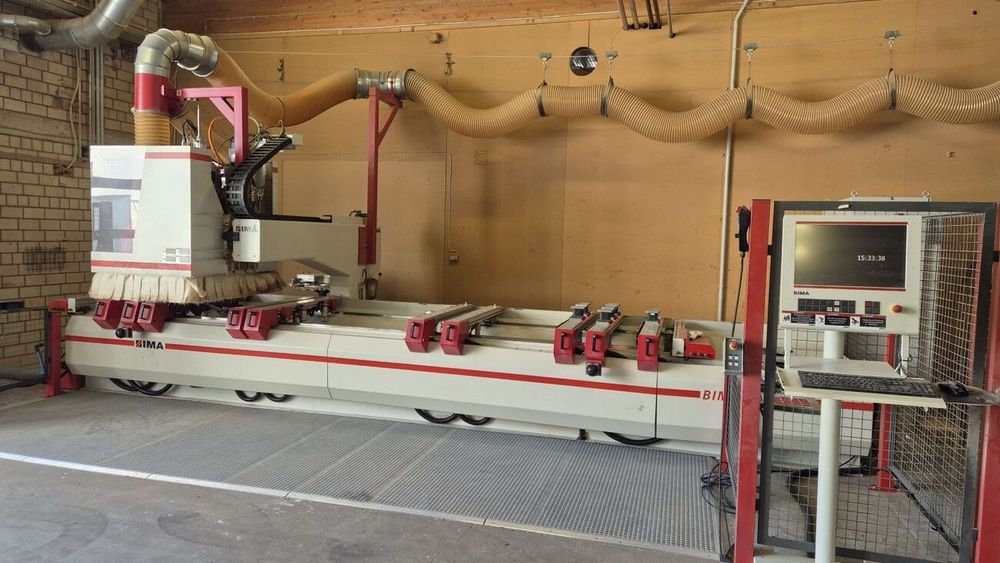

Ima BIMA/300/125/530 4-Axis

4-axis CNC machining center
Technical data :
Working range
- In X direction: 5300 mm
- In Y-direction with main spindle + tool 0 20 mm: 1400 mm
- In Y-direction with drilling unit: (all vertical drills) 890 mm
- Single-station machining: X= 2x2550 mm
- Clearance in center: X= 200 mm
- Indexing table machining: X= 2x2250 mm
- Free space in the center: 800 mm

1 automatic tool/adapter change magazine
- Arrangement: mounted on the support, moving in the X-direction
- Turret changer with 18 magazine slots

Guiding system
- All axes are equipped with preloaded, surface-hardened precision roller guides.

Central lubrication
- Manual central lubrication for all main-axis linear guides and Z-axis ball screw.

1 vacuum pump 90 m³/h

Console table consisting of:
- 2 fixed workpiece stops on the right and 2 on the left in the X-direction for movement in the Y-direction
- 10 support arms, infinitely adjustable in the X direction, each with a rear stop
- All stops are program-controlled
- The suction plates are secured via the patented 2-circuit clamping system, eliminating the need for hoses.
- 8 smooth support rails, automatically lowerable
- 2 mushroom buttons for workpiece clamping/releasing functions

Additional 2nd vacuum pump, 90 m³/h
1 additional center stop row, for centering workpieces
Chip conveyor belt

1 main spindle
- Motor power:
10.0 kW in S-6 mode
7.5 kW in S-1 mode
- Tool holder: HSK F63, taper diameter = 38 mm, similar to DIN 69893
- Speed range: infinitely variable 0-24,000 rpm, programmable

1 centrally integrated CNC axis, 360-degree rotation
- For all adapter units, with torque support on the main spindle and pneumatic interface

1 vertical drilling unit l14 with 6 horizontal spindles and attached groove saw unit
- Horizontal drilling units, each with 2 outlets

Attached groove saw unit
- Swivel range: 0 or 90°

ICOS CNC control system
Modern, high-performance PC-based control system featuring:
- User-friendly interface with Windows standards
- Path control of all servo axes
- Job list / order processing
- IMA backup and recovery system on two hard drives
- Uninterruptible power supply (UPS)

IMAWOP software package
- for the dialog-oriented creation of CNC machining programs.
- 3D view and basic simulation of the programmed workpiece, suction cups, and brackets, including tool and adapter display.
