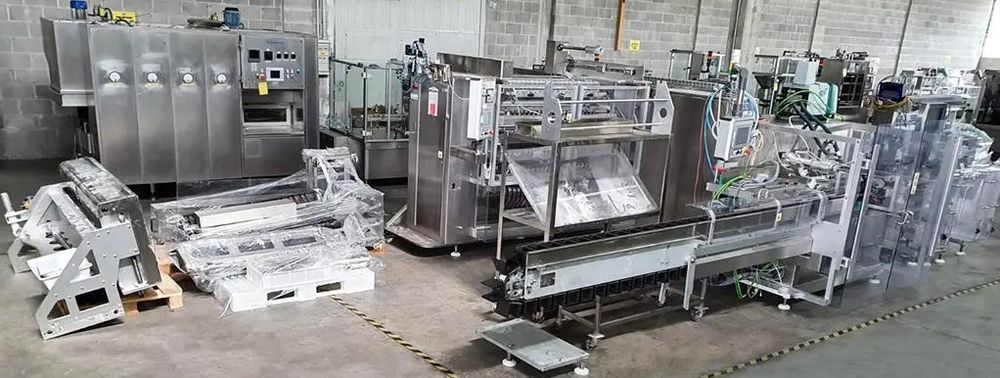

Ima G20C + R80/V + DELTA 120, Stickpack Complete Line

Line composed by
1) Alfa G20C Sachet Machine
2) Pick & Place R80/V
3) Delta 120 horizontal cartoner
4) Saturno leaflet folder
5) Herma labelling machine

PRODUCTION CHARACTERISTICS
Production speed: up to 60 cycles/minute
Sachet production: 72,000 sachets per hour (depending on sachet format, powder characteristics and process settings)
Dosing: 3–7 g per sachet (performed volumetrically by auger)
Sachet length: 90–110 mm (operating range 70–200 mm)
Sachet width: 26 mm
Heat-sealable laminated film: paper/Alu/PE or PET/Alu/PE

Stick-packs formats
26 × 120 mm — 5.9 g
26 × 90 mm — 2.95 g

Carton formats
Type A: 120 × 65 × 130 H — 30 sticks + leaflet
Type B: 95 × 55 × 130 H — 20 sticks + leaflet
Type C: 95 × 40 × 130 H — 14 sticks + leaflet
Type D: 95 × 65 × 100 H — 30 sticks + leaflet
Type E: 95 × 65 × 100 H — 30 sticks + leaflet

ENERGY CONSUMPTION
Power supply: 400 V – 50 Hz
Installed power: 32 kWA (49 A)
Compressed air: 6–7 bar
Air consumption: 100 + 50 l/min
