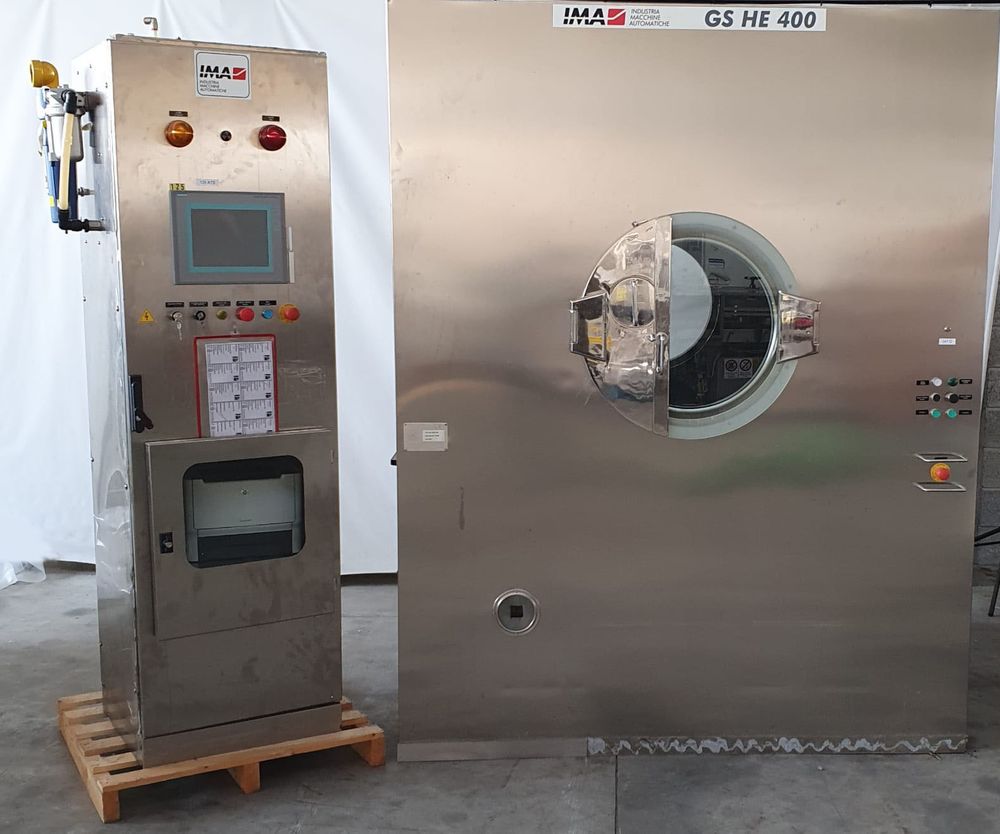

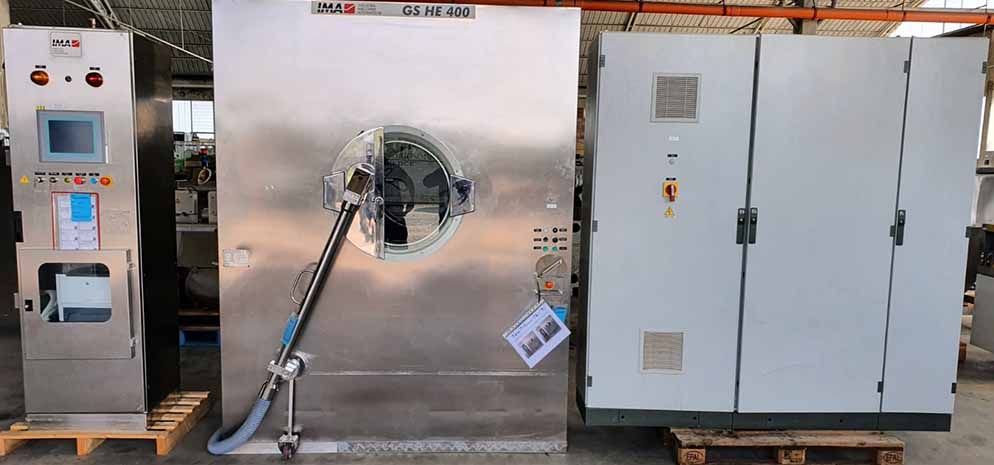

Ima Gs He 400 Coating pan
Ref :
2788863-16-AW
Condition :
Used
Manufacturer :
Ima
Model :
Gs He 400
Short Description :
Coating pan
Year(s) :
2007
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Non-perforated stainless steel AISI 316L coating pan, diameter approx. 1,630 mm
Pan opening approx. 520 mm
Indicative working capacity 200–400 L
Minimum operating load: approx. 80–100 L
Optimal load: 200–350 L
Maximum load: up to 400 L
Pan drive motor approx. 4 kW, variable speed
Process air ventilation system approx. 2,500 m³/h
Multi-gun spray system on sliding support

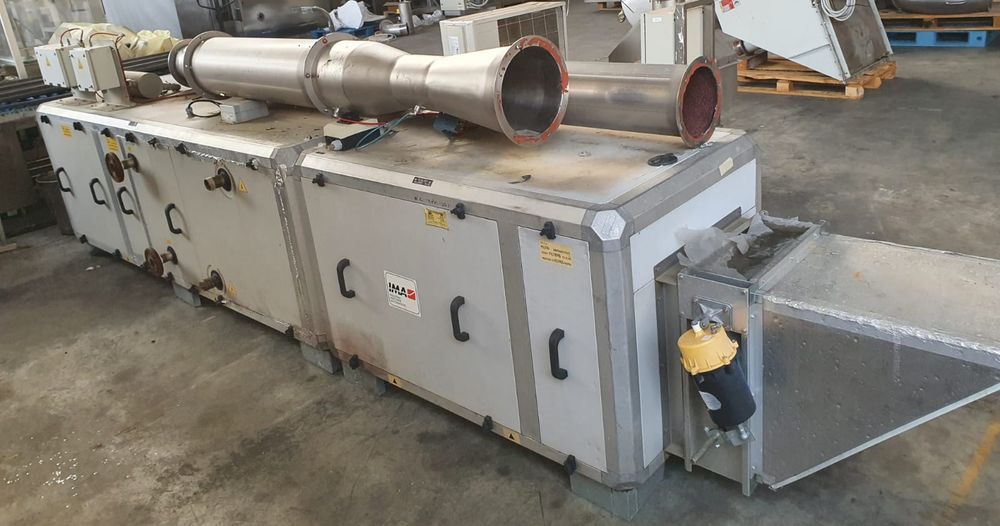

Air handling unit with temperature control and filtration

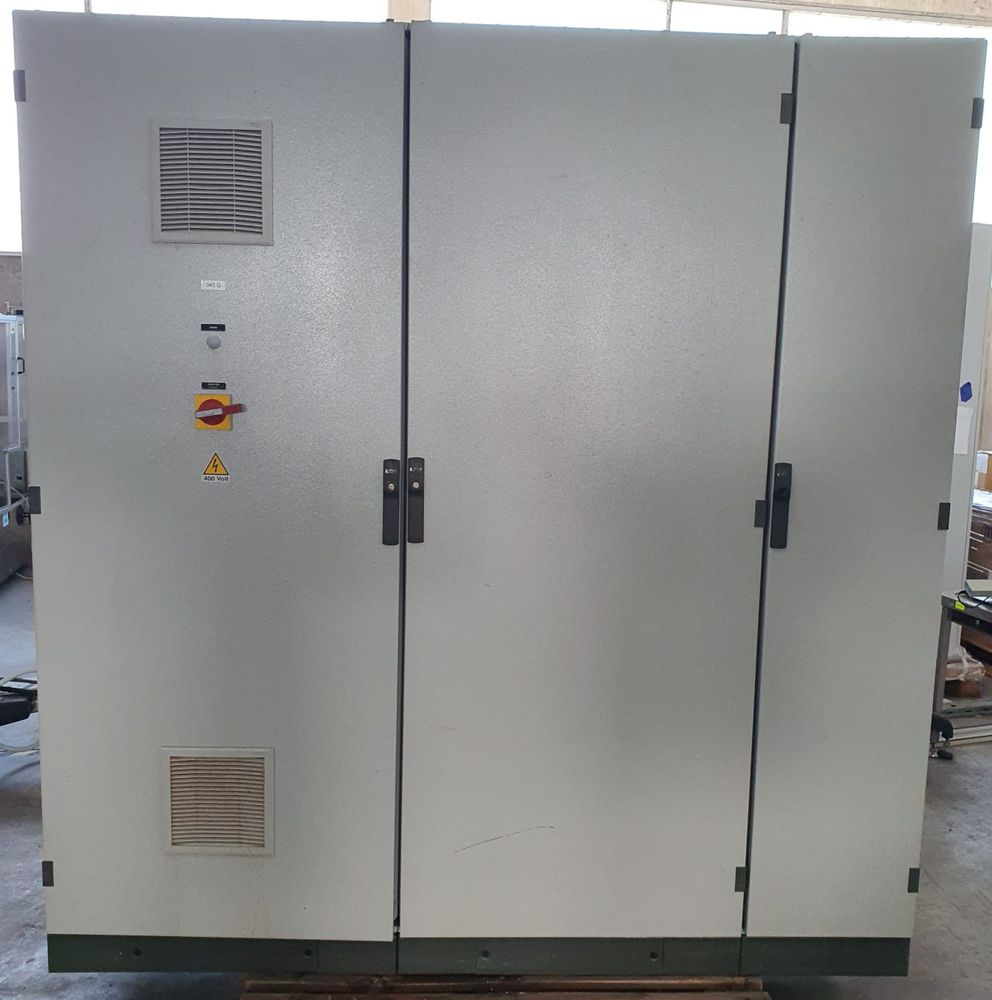

Electrical panel with industrial PLC/HMI for parameter management
400 V – 50 Hz – three-phase
Total installed power: approx. 25 kW
Compressed air: 6–8 bar
