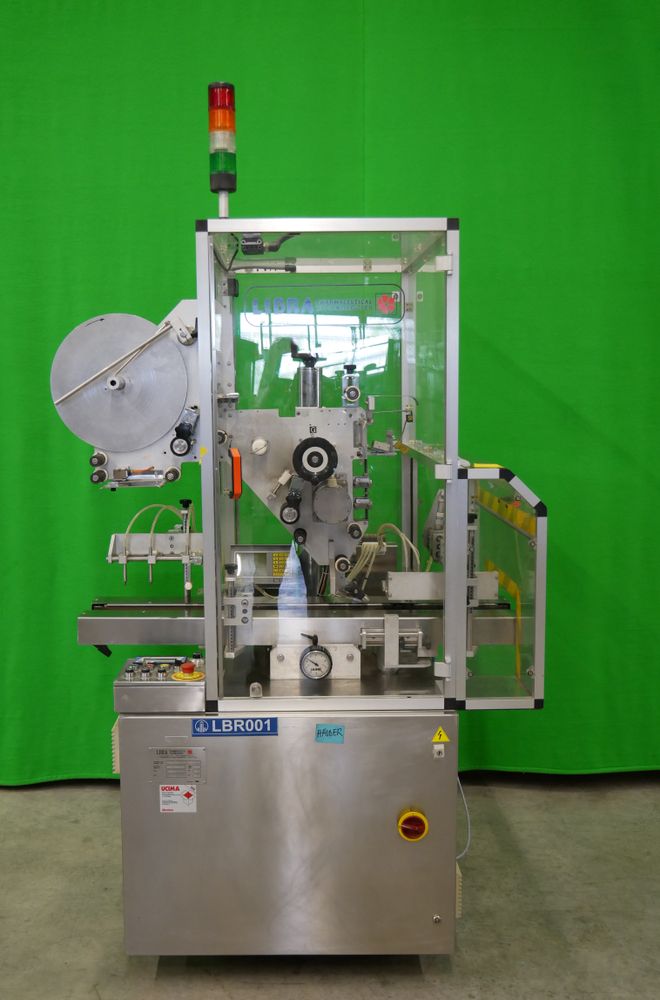

Ima Libra SENSITIVE 250 V

Self-adhesive labeling machine for top-mounted labeling
(vignettes, bollini) on folding boxes, etc.
for top-mounted labeling (vignettes, bollini) on folding boxes, etc.,
folding box format min. 30 x 10 x 60 mm (AxWxC),
max. 200 x 120 x 180 mm (AxWxC),
label format range min. 15 x 10 mm (LxH),
max. 100 x 60 mm (LxH), label roll outer diameter max. 300 mm,
label roll inner diameter 36 mm,
equipped with proximity sensor for label roll end,
label presence detection on carrier tape,
pre-dispensing sensor, CBR code reader with bad ejection,
label presence detection on folding box,
output up to 250 folding boxes per minute,
electrical connection 220V/50Hz, power consumption 1 kW,
compressed air 6 bar, Siemens SIMATIC S5-100U,
machine base area approx. 1300 x 1050 mm (LxW),
machine height approx. 2350 mm,
machine net weight approx. 450 kg.
