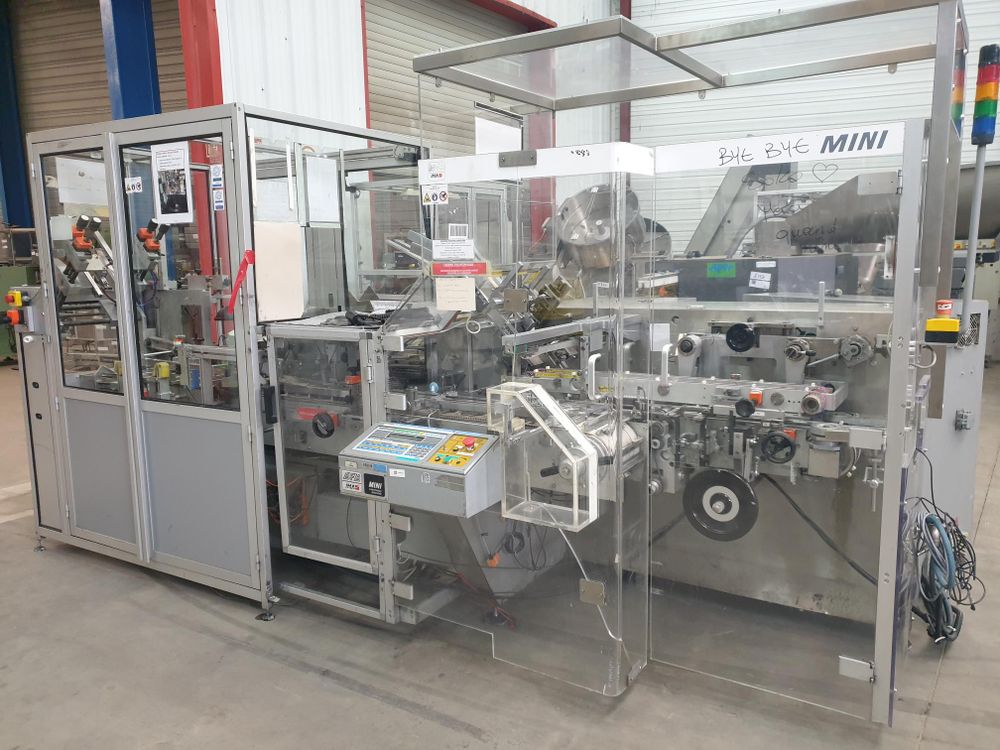

Ima MINI horizontal cartoner

Weight : 600 kg
Dimensions :
(L x W x H) 5.00 x 2.00 x 2.00 M

Current tools:
30 ml and 100 ml bottles
Carton with alternating tabs.
30 ml A: 44 mm B: 43 mm C: 104 mm
100 ml A: 58 mm B: 57 mm C: 133 mm
100 ml A: 71 mm B: 50 mm C: 131 mm

Capacity:
Carton dimensions:
Length (C): min. 80 mm - max. 190 mm
Width (B): min. 37 mm - max. 80 mm
Height (A): min. 24 mm - max. 71 mm

Maximum production: 50 cartons/minute
* Speed ​​depends on the desired final packaging type.

Total electrical power:
3.4 kW
Air pressure: 6 bar
380 V 50 Hz 7 A
