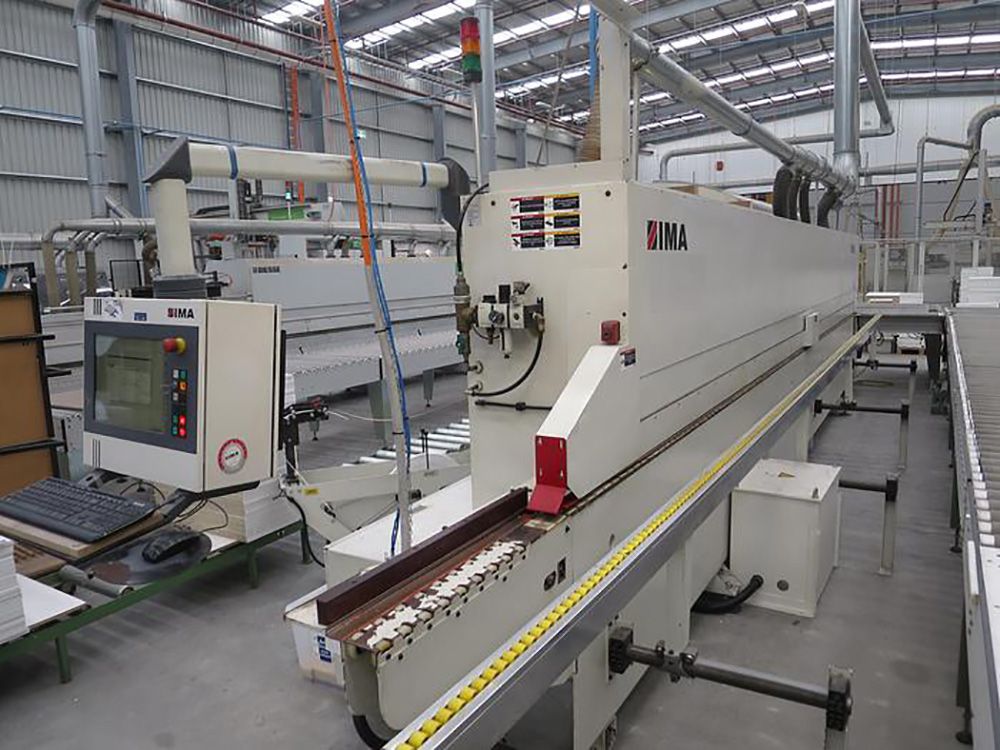

Ima Novimat I G80

Left-hand automatic edgebanding machine
- Execution …………………… ………. stop on the left in the direction of workpiece movement
- Edging material … …… ………… natural veneer in rolls and strips;
…… ……………. synthetic veneer in rolls and strips;
………… ………. solid wood slats
- Type of glue ……………………… ………. hot melt adhesive based on synthetic resins
- Diameter of roll material (max), mm ………. 860
- Speed ​​of workpiece passage, m/min ………………. 0 - 30
- Edge height, mm ………………………………… 14 … 65
- Edge thickness, mm …………………… …………… 0.4 …12
- Slab thickness, mm
minimum …………………………………… 8
maximum with template …………………………… 40
maximum without template ………………………… 60
- Slab width (min), mm ……………………………… 60
(with minimum length 300 mm)
- Slab length (min), mm ………………………………… 150
(with minimum width 120 mm)
- Edge section (max), mm
slats …………………………………………… 12 x 55
PVC ……………………………………………… 3 x 55
- Slab protrusion beyond the chain, mm ……………………………… 40
- Compressed air pressure, bar ……………………… 6
- Aspiration, m/s ……………………………………… . 28

Equipment :
1. Novimat loading section
- horizontal stop ruler,
2. NOVIMAT format processing
- jointing and milling unit 08.378
- 2 motors of 4.5 kW
3. Emitter 300 mm, 2 x 1.5 kW
4. Edge material gluing section.
- Gluing unit 04.1570
- with automatic feeding of granulate 283.205 from a hopper with a capacity of approx. 30 kg through a suction pipe into the melt chamber with a level regulator.
5. 2-roll edge magazine
6. Cross-cut unit 08.42 / 30 / B
- saws with carbide edges 160 x 22 mm z = 48.
- Tool set
7. Rough milling unit 08.055 with 2 motors of 1000 W
- Set of NM cutting tools.
- With supply of separating liquid
8. Multifunctional unit MFA milling 08.348
- two-motor, tool for a radius of 2 mm.
- Controlled axis !!!
9. Unit for scraping profile 08.519
- Tool R = 2 mm
10. Self-copying flat scraping unit 08.521 for removing adhesive residues
11. Unit for grinding chamfers / polishing unit 08.617-2
