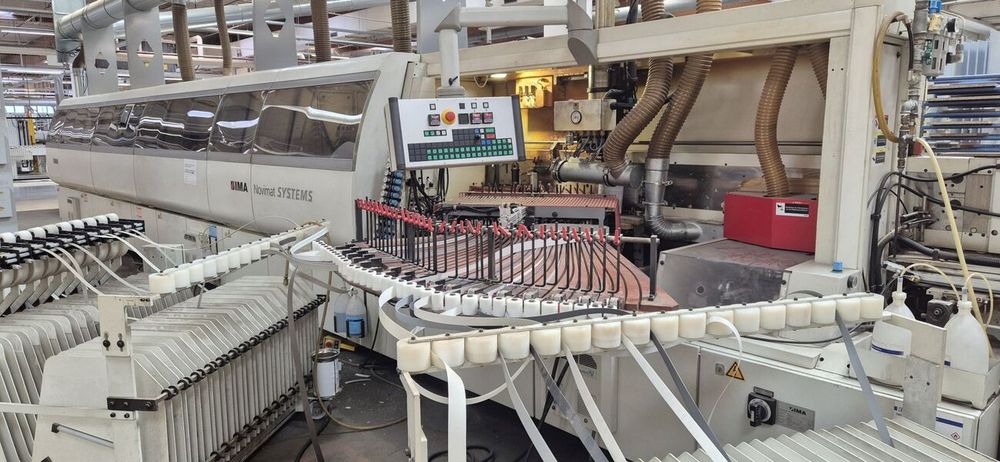

Ima Novimat Systems/I/R75/1000

Single-sided edge banding machine
Technical data:
PC Control
- ICOS OPEN control system

Feed speed: 5-25 m/min, frequency-controlled
Stop ruler with electronic positioning control
Release agent application top and bottom

Jointing milling unit with 2 motors, each 4.5 kW, 9,000 rpm, controllable
- Horizontally adjustable via axis

Infrared heater, approx. 300 mm long, 2 x 1.5 kW

Gluing unit
- Glue application with pneumatic quick-lock system
- Automatic PU melting system “Quickmelt” for 2 kg cartridge containers
- 32-position edge magazine (8 tracks up to 3 mm / 24 tracks up to 1.3 mm)

Vertical roll holder for 32 rolls, max. diameter 850 mm

End trimming unit on top pressure beam with 2 motors, each 200 W, 400 V, 12,000 rpm
- Horizontal pneumatic swivel 0-25°
- With controllable side tracing, for 3 edge thicknesses

Milling unit with 2 motors, each 1000 W, 400 V, 200 Hz, 12,000 rpm
- Operating in counter-rotation

[b]Multi-functional processing unit 08.348
- For chamfering or radius milling of the top and bottom longitudinal edge, as well as copying of the front and rear corners of the workpiece
- Program-controlled conversion for up to 4 profiles
- 2 motors, each 660 W, 400 V, 200 Hz, 12,000 rpm

Spray nozzles top and bottom for applying cleaning agents

Multi-profile scraper unit
- With stepper motor axes for horizontal and vertical positioning
- For 4 profiles

Flat scraper unit
- With electro-pneumatic disengagement mechanism

Copy buffing unit
- With 4 buffing motors, each 250 W

Buffing unit
- With 2 lower and 2 upper motors, each 180 W, 50 Hz, 1400 rpm

Smoothing unit
- For smoothing and eliminating white breakage on milled PVC/ABS edges
With one top and one bottom smoothing zone

Workpiece return system LGIMATECH ZHR 05/L/145
- Inclined air cushion table, 2 return belts with bottom brushing units
