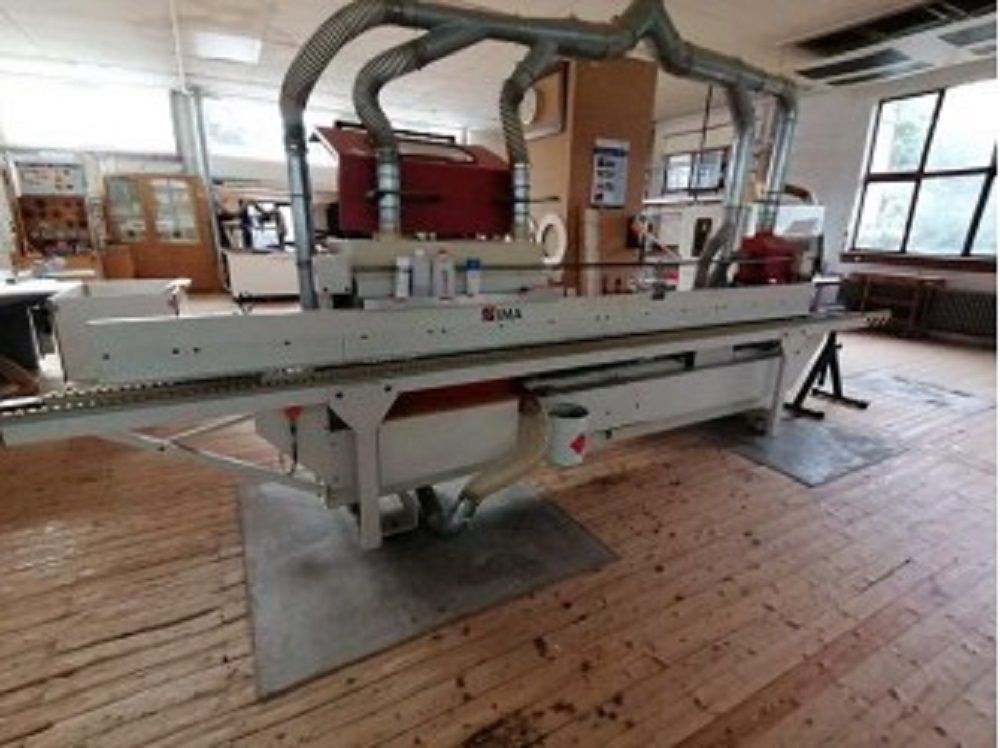

Ima Quadromat 3512 F

Edge Banding Machine
At 5500 mm long, the Quadromat is the shortest edge banding machine available.
With its integrated workpiece return, it enables complete processing of edge materials.
Not only are the long edges milled within the machine, but the front edges are also copied, thus completing the processing.
The finished workpiece is returned to the operator, eliminating manual rework.

With PLC control with up to 20 processing programs
Workpiece Dimensions
Minimum width 60-80 mm (depending on the edge material)
Minimum length 150 mm
Workpiece thickness 10-50 mm
Edge band thickness 0.4-12 mm
Minimum edge band length 400 mm
Feed rate 18 m/min.
With 2 jointing motors
With multifunctional milling unit (flush, bevel, radius)
With scraper
With miter saw
With 2 glue pots (for transparent and white) and 1 spare pot
Compressed air connection 7-10 bar
Extraction connection 160 mm
Weight approx. 2400 kg
