Ima, Schelling FH 4 430

Beam saw
Total Space Required (with Panel Saw) 11,600 x 7,500 mm (approx.) 209011) AUTOMATIC PANEL MAGAZINE (LOADER) - BARBARIC Mod. LCV Maximum panel size 4,250 x 2,250 mm
Upper bridge (X-axis, length 11,400 mm), with mobile carriage (on the X-axis)
Vacuum suction cup unit (movable on the Z-axis) rotating 90°
Rotates panels with a maximum length of 2,800 mm at 90°

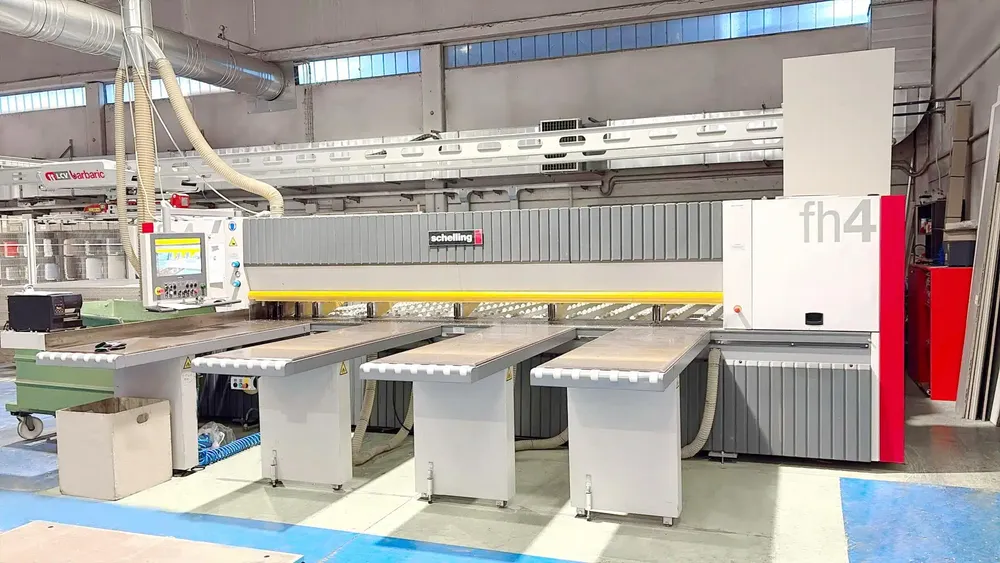

209010) PANEL SAW Mod. FH 4 430 MCS Evolution Numerical Control (Windows XP-based software)
Rear pusher with 7 clamps
Maximum cutting width (mm) 4,300
Max. blade protrusion (mm) 105
Maximum clamp opening (mm) 105
Scoring unit (max. blade diameter) 200 mm
Main blade unit (max. blade diameter / power) 360 mm - 18 kW
Adjustable blade carriage speed (m/min) 5 - 160
No. 4 front air cushion tables
Total power (kW) 35
