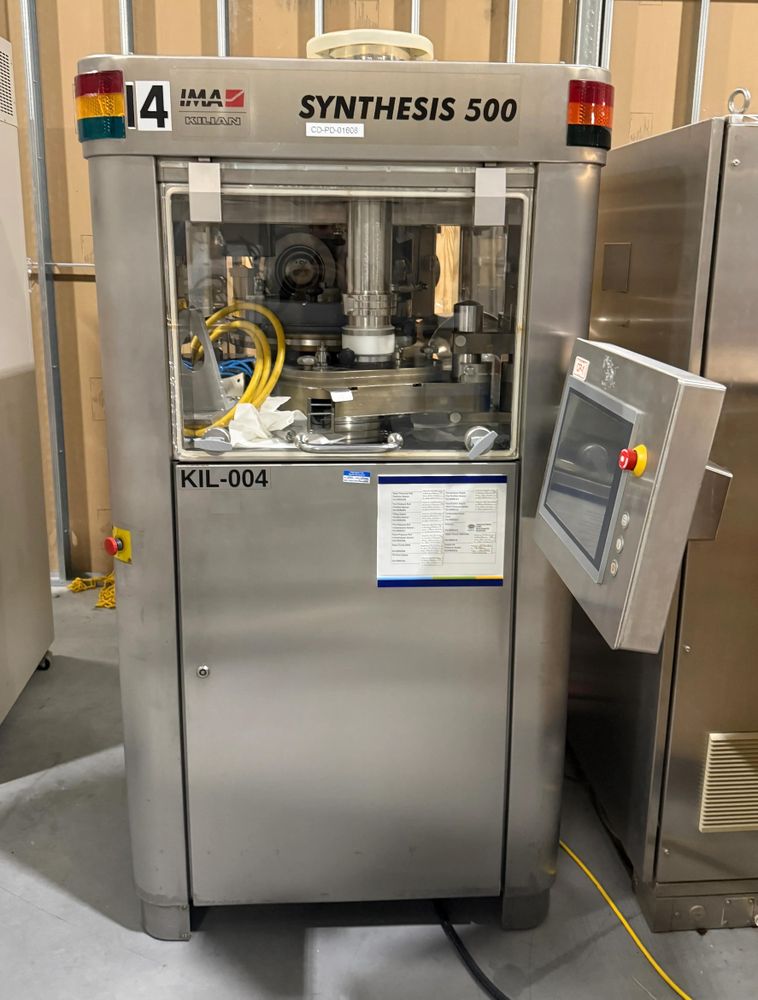

Ima Synthesis 500 Tablet Press

MACHINE CHARACTERISTICS
Machine configurations: Mono-layer, Bi-layer, Tab-in-Tab, Bulls-Eye
Press stations: 37 B tooled/30 D tooled
Tool type (EU and TSM): B; D
Max. compression force (first layer): (kN) 10
Max. compression force (second layer): (kN) 80 (B)/ 100 (D)

PRODUCTION CHARACTERISTICS
Die filling (mm): 18 (B)/ 20 (D) max
Tablet diameter (mm): 16 (B)/ 24 (D) max
Max. output (Tab-in-Tab TT): 52,500 (B)/ 45,000 (D) (tablets/hour)
Max. output (Tab-in-Tab TTH): 98,000 (B)/ 84,000 (D) (tablets/hour)
Max. output (Mono-layer): 266,000 (B)/ 198,000 (D) (tablets/hour)
Max. output (Bi-layer): 133,000 (B)/ 99,000 (D) (tablets/hour)

ENERGY CONSUMPTION
Standard voltage: 400 V
Frequency: 50/60 Hz
Compressed air: 6 bar

DIMENSIONS
Weight: 3,580 kg
