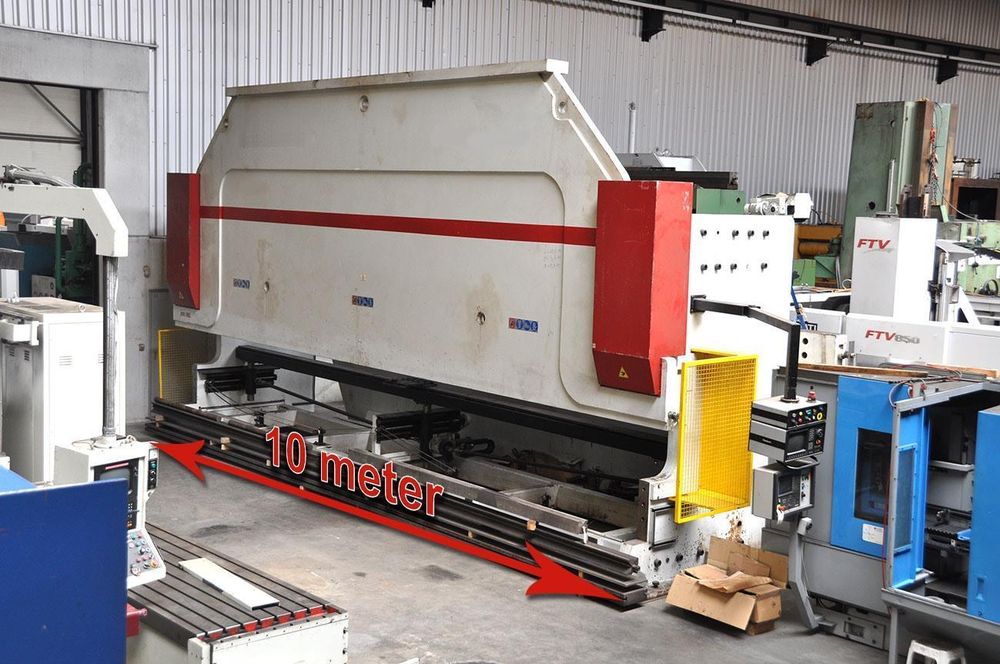

Imal Lexus 420 ton x 10 100 mm CNC

Capacity: 420 Ton x 10100 mm
Backgauge: 3-axis CNC
Control: Delem DA 65 graphic 2D
Passage between uprights: 9000 mm
Max stroke: 350 mm
Max distance between table–ram: 600 + 200 mm
Depth of throat: 510 mm
Table width: 300 mm
Locking speed: 100 mm/sec
Working speed: 9 mm/sec
Returning speed: 90 mm/sec
Electric motor power: 35 kW
Length: 10100 mm
Depth: 2450 mm
Height: 5020 + 1310 mm
Weight: 85500 kg
4-axis press brake (Y1, Y2, X, R)
Hydraulic crowning system integrated in table
Multi V-shaped clamp
