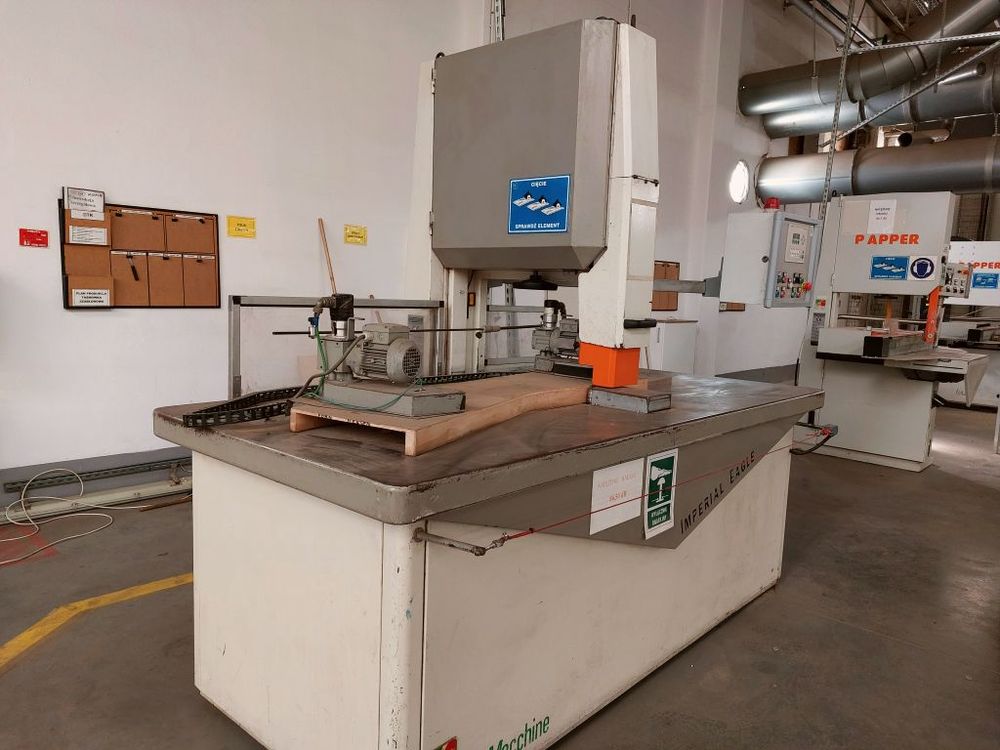

Imperial Eagle Curved Cutting Saw

Guiding the cut material along the copier.
After placing the material on the copier, the machine itself feeds and cuts the material, returns to the starting position, moves the processed material and makes the next cuts.
The operator's operation consists of placing new material and collecting the cut elements

Technical data:
Wheel diameter 800mm
Wheel width 40mm
Max. cutting height 120mm
Max./min. cutting length 150/1500 mm
Max./min. saw blade thickness 20/13
Saw band length 5480 mm
Saw speed 29 m/s
Engine power 5.5 kW
Weight 900kg
