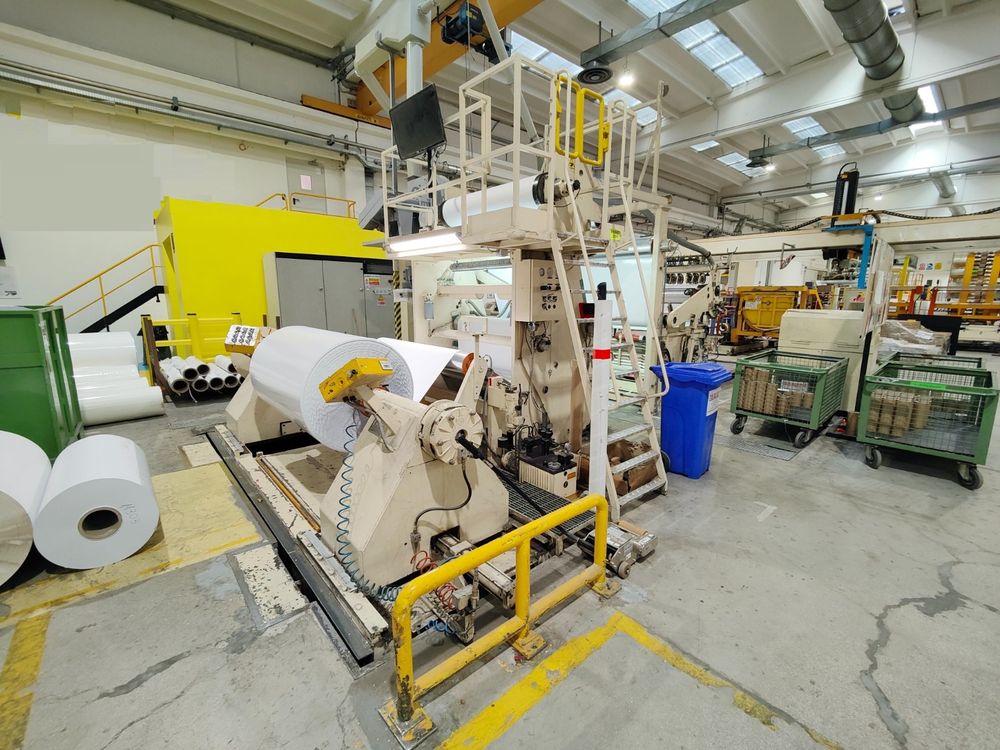

IMS 1600 mm T2

Slitter rewinder
Ideal for paper

Shaftless unwinding unit :
Maximum diameter unwinding : 1250 mm
Maximum working width: 1600 mm
Maximum reel weight: 1500 mm
Minimum internal core diameter: 76 (70) mm
Maximum tension at maximum diameter: 1000 N
Minimum tension at minimum diameter: 200 N

Rewinding unit :
Maximum diameter rewinding: 1200 mm
Maximum control design diameter: 1000 mm
Maximum reel weight: 1200 kg
Maximum working width: 1300 mm
Maximum operating speed: 600 m/min
Minimum winding diameter reference: 285 mm
Maximum winding tension: 1500 N
Motor type: IEC D160M

Edge guide and alignment:
Axial alignment tolerance: ±100 mm
Cross alignment tolerance: ±25 mm
Photoelectric edge control: FIFE P50
Hydraulic extractor for easier manipulation of the winding shaft
Integrated lifting and reel handling support
Main power supply: 3-phase 380 V / 50 Hz
Auxiliary services supply: 110 V/ 50Hz
DC drive supply: 400 V DC
Dismantled
Immediately available
