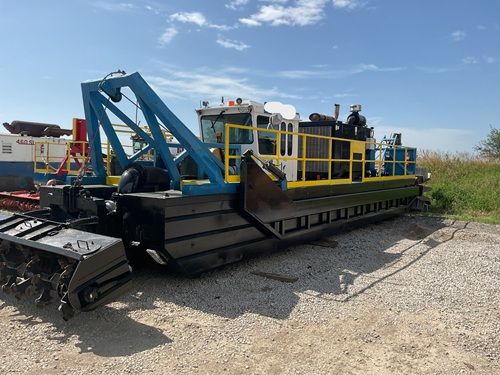

IMS 7012 HP VERSI-DREDGE Dredge type: Horizontal cutter suction / auger

Engine hours: 552
New motor installed: 2025
Rebuilt slurry pump
Rebuilt bearing block
Rebuilt slurry pump planetary
Rebuilt slurry hydraulic pump
Rebuilt slurry hydraulic motor
Replaced valve wiring
Updated cab display
Updated wiring
Hull cleaned and painted
Hull bottom cleaned and painted
Gear box fluids changed
Replaced auger motors
Replaced bushings
Never used in salt water
Length: 51 ft 5 in (15.7 m)
Width: 12 ft (3.66 m)
Height: 10 ft 8 in (3.25 m) (muffler removed)
Weight: 47,700 lb (21,600 kg) (without fuel)
Cut width: 135 in (3,430 mm)
Cut depth: 26 in (660 mm)
Working depth: 30 ft (9.1 m)
Cutterbar diameter: 26 in (660 mm)
Cutterbar length: 135 in (3,430 mm)
Recessed dual hydraulic motor drive
Direct drive
No gear reduction
Variable cutterhead speed: 0–60 rpm at 2,500 psi
Cutterhead torque: 23,885 in-lb (2,969 Nm) at 2,500 psi (peak)
Cutterhead tip force: 1,837 lb (8,171 N)
Replaceable carbide steel teeth
Pump type: GIW
Discharge diameter: 10 in (254 mm)
Suction diameter: 12 in (304 mm)
Sphere passage: 5.0 in (127 mm)
Pump capacity: 5,000 gpm (315 L/s) at 125 ft (38.1 m)
TDH: Slurry SG 1.25 at 760 rpm with 2,000 ft (610 m) discharge length
Variable pump speed: 0–790 rpm
