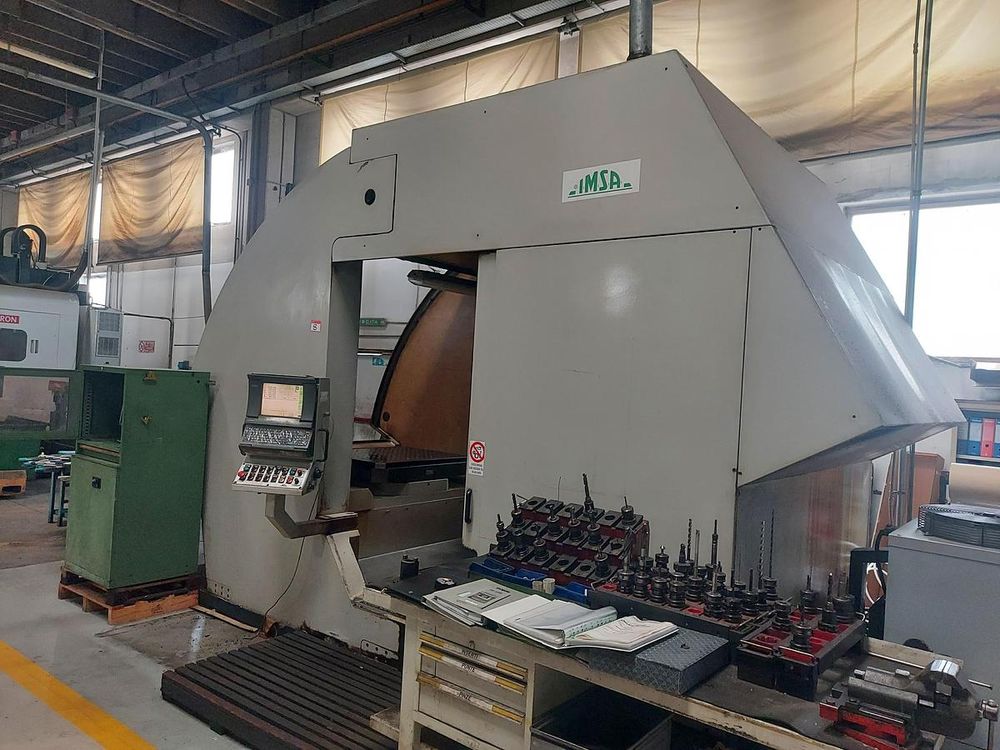

Imsa MF 1000 BB Gundrill and Milling Machines 4200rpm

X travel: 1250mm
Y travel: 1000mm
Z travel (thread axis): 380mm
Drilling depth (V): 1000mm
Drilling head inclination (C axis): +/-20°
Table rotation (B axis): 360000 x 0.001°
Workpiece approach (W axis): 500mm
CNC: SELCA 4040D
Measuring system: optical scales
Minimum drilling diameter from solid: 5mm
Maximum drilling diameter from solid: 40mm
Spindle power: 10kW
Spindle speed: 4200rpm
Drilling type: gundrill
X rapid feedrate: 10m/min
Y rapid feedrate: 10m/min
Z rapid feedrate: 10m/min
V rapid feedrate: 10m/min
Table size: 1000 x 800mm
B axis resolution: 0.001°
Static table capacity: 4000kg
Dynamic table capacity: 8000kg
Coolant tank capacity: 650l
Total installed power: 30kW
Machine weight: 17500kg
Machine dimensions: 5000 x 2600 x 3300mm
