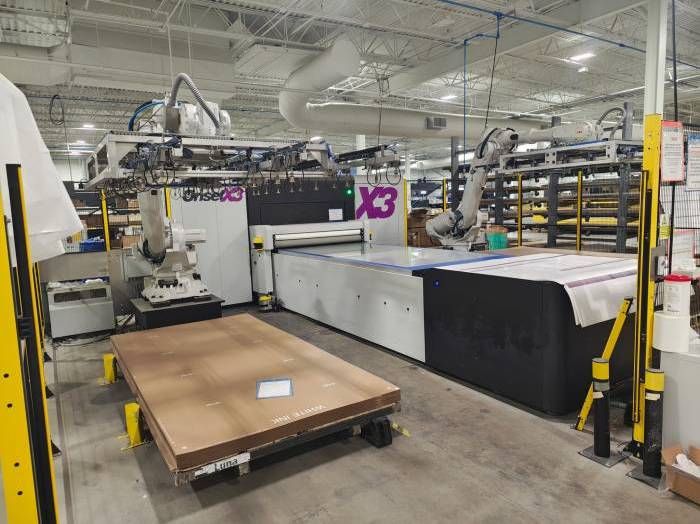

Inca Onset X3 4

4/C with Dual Hi-5 Robotic Arms.
KEY FEATURES AND BENEFITS:
Full Width UV Lamp System
The Onset X Series offers fast, full width bi-directional printing with adjustable print finishes from a matt satin all the way up to a vibrant gloss on a wide range of media.
Sensors monitor the amount of UV light exposure around the print carriage and control the cleaning cycles in the daily schedule to maintain optimum performance and printhead life.
Mechanical Substrate Height Detectors (MSHDs)
Inca Onset printers have two pairs of mechanical substrate height detectors to protect the printheads and carriage from damage while printing.
These monitor for potential obstructions that exceed the substrate height during printing.
Any obstruction that exceeds this height will trigger a detector and cause the printer to immediately stop all movement.
25 Zone Vacuum Table
The 25-zone vacuum table features a powerful vacuum system and skin which reduces the need for bed masking.
This greatly reduces set-up times for the most common POS substrates and additionally increases throughput of short-run, fast-turnaround print.
Vacuum zones are independently controlled and the auto zone function allows it to be easily managed by the operator.
Frequently-used formats can be automatically programmed and stored in a user-created database.
Vacuum Bed Monitoring
All Onset printers have vacuum level monitoring which will stop the printer if the vacuum pressure is too low to hold the material securely.
This helps to prevent possible damage to the print carriage when printing porous and/or materials that are not completely flat.
Easy to Use Graphical User Interface (GUI)
Inca has developed a new GUI for the Onset X Series that provides a powerful yet simple-to-use printer and job management tool.
The new GUI allows the operator to initiate and finalise jobs as well as save settings, create print queues while managing and optimising every stage of the print process.
The GUI is multi-language capable
