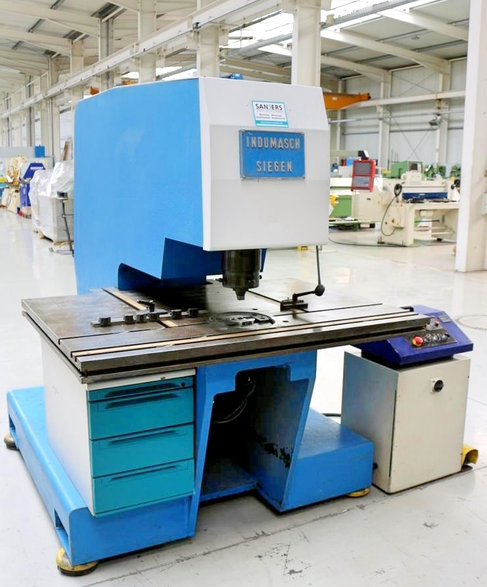

Indumasch IS 35-830 35 t

Press Force: 35 t
Plate Thickness Capacity: 8.0 mm
Throat Depth: 830 mm
Maximum Punch Diameter: 105 mm
Table Size: 1500 x 1200 mm
Maximum Working Height: 920 mm
Stroke: 90 mm
Strokes per Minute: 200
Hydraulic Pressure: 220 bar
Oil Tank Capacity: 80 l
Motor Power: 4.0 kW
Machine Dimensions: 1600 x 1800 x 1800 mm
Machine Weight: 3200 kg
Electro-Hydraulic Punch Press
Long Reach Design
Robust C-Frame Construction
Cast or Welded Frame
High Punching Precision
Compact Footprint
Hydraulic Overload Protection
Separate Control Unit
Single Stroke Mode
Continuous Stroke Mode
Infinitely Adjustable Top Dead Center
Continuously Adjustable Bottom Dead Center
Digital Position Display
Movable Foot Switch
Operating Manual (PDF)
