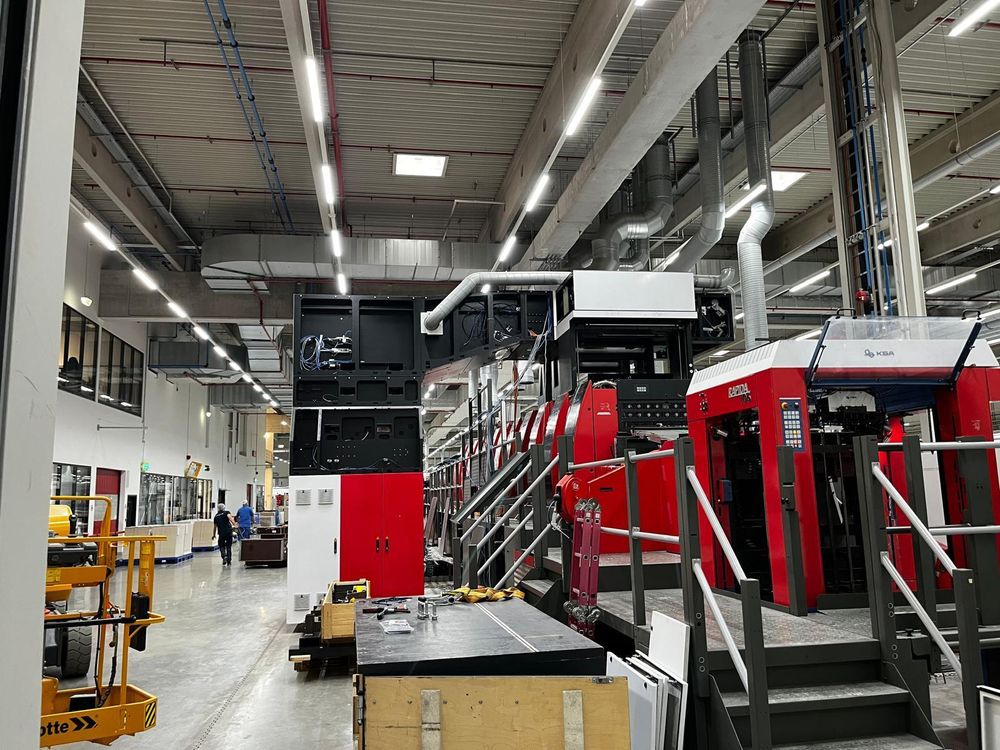

Infigo SF110 GF-WS2-MFU Coating + Laminating

VINFOIL INFIGO SF110
Foil Loading Station (FLS) STANDARD
In this unit, the operator can prepare, during production, the next job.
Changing the reels takes place at ground level, which ensures a very easy and safe operation
Special dancer roller for levelling the unbalance of the turning foil reel during the production
high speed and for a perfect web tension
Electrical roll manipulator for easy loading and unloading the foil reels
Vacuum bar to prepare the new foil reel for the automatic glue cycles
During the automatic glue cycles the paper infeed of the press will be interrupted for maximum 1 minute.
Cross Section (CS) STANDARD
In the cross section the angle bars and the Web Splitting knives are integrated
The angle bars can be moved laterally to position the sliced webs at any location on the printed sheet.
Motorized foil infeed system from Foil Loading Station to the Cross Section
Direct Foil Drive (DFD) STANDARD
With the DFD (Direct Foil Drive) rolls the foil web speed is controlled by servo motors –
these motors are controlled by an encoder integrated into the printing press to ensure
a very precise synchronization of the foil web with the speed of the printing press
Electronically adjustable web tension
Web Splitting (WS) STANDARD WITH 1 KNIFE
With this technology foil consumption can be reduced by 65
The foil web can be split up to a maximum of 5 webs.
The width of each web isadjustable.
The total width of the foil core is the total of all sliced webs.
1 knife is delivered standard. Option up to 4 knives
Automatic foil changeover still availableMultiple Foil Use (MFU®) STANDARD
MFU® is redirecting the cold foil web back into the printing nip after transferring parts of the metallic layer for the first time.
With this technology a foil web can be used up to 3 times to generate optimal utilization of the cold foil reel.
The use of MFU® can reduce the cold-foil consumption up to 85 %
2 MFU® decks with horizontally movable guiding rods for lateral adjustment of the foil webs position
MFU® Decks can be moved in vertical direction for circumferential adjustment ofthe foil web position
Automatic foil changeover still available
Foil Waste Cutter (FWC) STANDARD
After the printing process, the used cold foil is exhausted to a pipe system and shred to small pieces
The shred foil is exhausted from the process through a pipe system to the materialseparator
No rewound cold-foil cores to dispose
VIFOP® – Vinfoil Intelligent Foil Optimizing Program - STANDARD
With this on-line software, foil consumption is calculated by just uploading the pdf with the layer of the cold foil.
Very useful for management and prepress.
With this data the Vinfoil Infigo® SF110 is automatically set

Specifications :
Vinfoil Infigo® SF110GF
Power supply / air supply
Power voltage 400 V / 50 Hz
Power requirement 40kVA
Fuse protection at 400 V 3 x 63A
Air supply 8 bar
Air flow rate (including MFU®) 1.440 ltr/min
For each extra WS system +360 ltr/min
Compressed air quality according to ISO 8573/1
Filtration on solid parts class 4
Filtration on oil class 4
Dry air class 4General specifications
Total length (foil loading side) 2500 mm
Total width 1850 mm
Total height 4000-4600 mm (depending on type machine and elevation height)
Total net weight 7000 kg
Advice for ceiling height
The minimum space above the printing units of the press required for the installation of the Vinfoil Infigo® SF110GF must not underrun 2500 mm.

Specifications cold foil reels:
Maximum foil roll diameter 450 mm
Foil core diameter 6“
Maximum foil width in loading station 1100 mm
Minimum foil width in loading station 300 mm
Minimum foil width after the cutting device (optional) 100 mm

Specification reel cores:
Basic material Laminated paper core
Core winding geometry Spiral
Min. core thickness 13 mm
Moisture content according to DIN 11093--3 at 130°C 8%
Radial pressure resistance Up to 340 N/cm

Speeds:
Max. speed 18.000 sheets/hour (depending on press specs and settings,paper/carton, foil, adhesive and blankets)
Maximal Quick Start speed of the printing machine at Web Splitting 3.000 sh/hr at MFU® 3.000 sh/hr at full web 5.000 sh/hrSpecifications air filter system
Filter system (L x W x H) 1085x1160x3232 mm
Power voltage 400 V / 50 Hz
Total power supply 7,5 kW
Air supply 8 bar
Air consumption 3,5 l/min
Maximum tube length between Vinfoil and the filter system 25 m
Total net weight filter system 1500 kg
Material Separator with frame
Material separator with frame (L x W x H) 2350x1200x3955 mm
Power voltage 400 V / 50 Hz
Total power supply 1,5 kW
Weight 1000 kg
Dismantled
In stock
