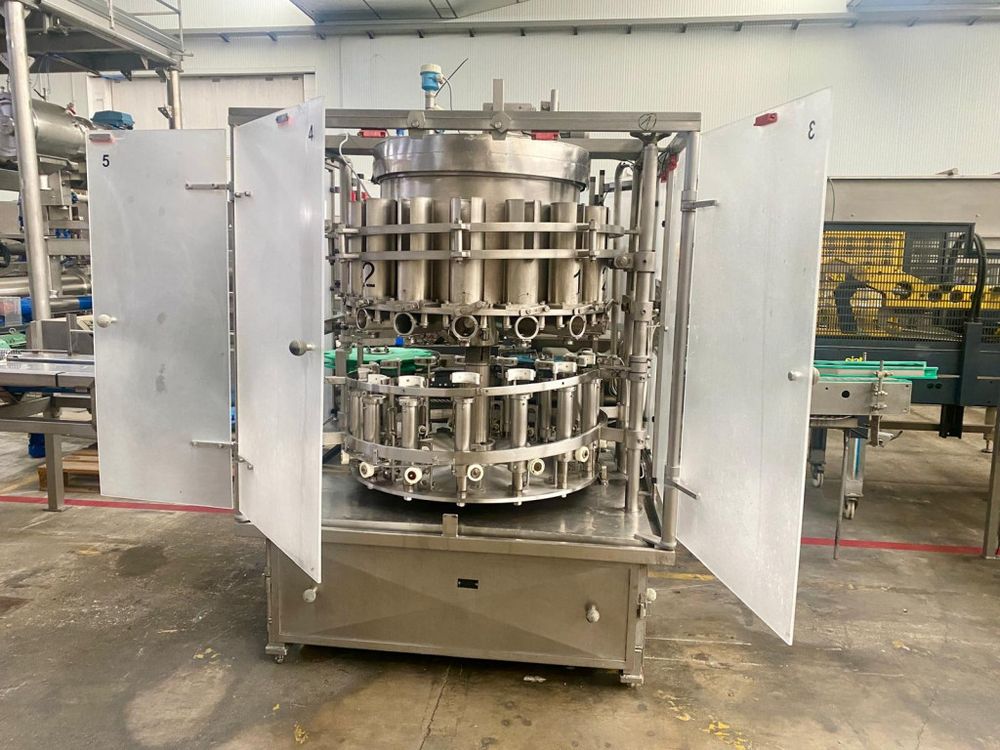

Inmeconsur V15, Automatic Rotary Piston Filling Machine

Format 73 mm
Made up of Stainless steel
Production capacity 50 - 180 c.p.m.
Automatic rotary filler with fifteen (15) filling pistons
Maximum piston capacity: 450 ml
Container infeed height: 1,050 mm ± 50 mm
Electrical supply: 380 V – 3 phase – 50 Hz

Filling system:
The synchronization system positions the containers under sixteen (16) filling valves.
The product is supplied to these valves by pistons arranged around the product holding tank. These pistons include an adjustable stroke mechanism that allows precise regulation of the dosing volume.

Main machine components:
Container infeed conveyor
Container entry system with feed screw and star wheel, with free discharge
Quick assembly and disassembly system for valves and pistons to facilitate cleaning
Independent motorization with electronic frequency inverter
Centralized electrical control panel for managing all machine functions

Control and safety systems:
Safety photocell: no container, no filling
Automatic machine stop in case of product shortage
Minimum and maximum product level control in the tank

Construction:
The machine is fully manufactured in stainless steel, except for standard commercial components.
It also includes complete guards and protective enclosures to ensure safe operation.
