Innse H 20‑09 Büter Hebetechnik H 20-09 — lifting unit, workshop lift

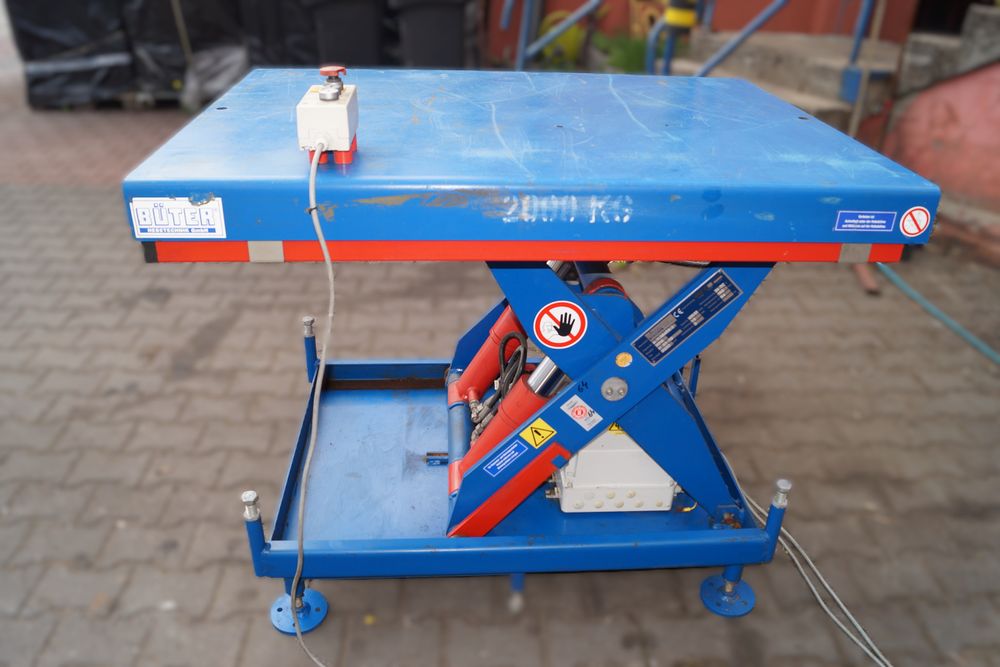

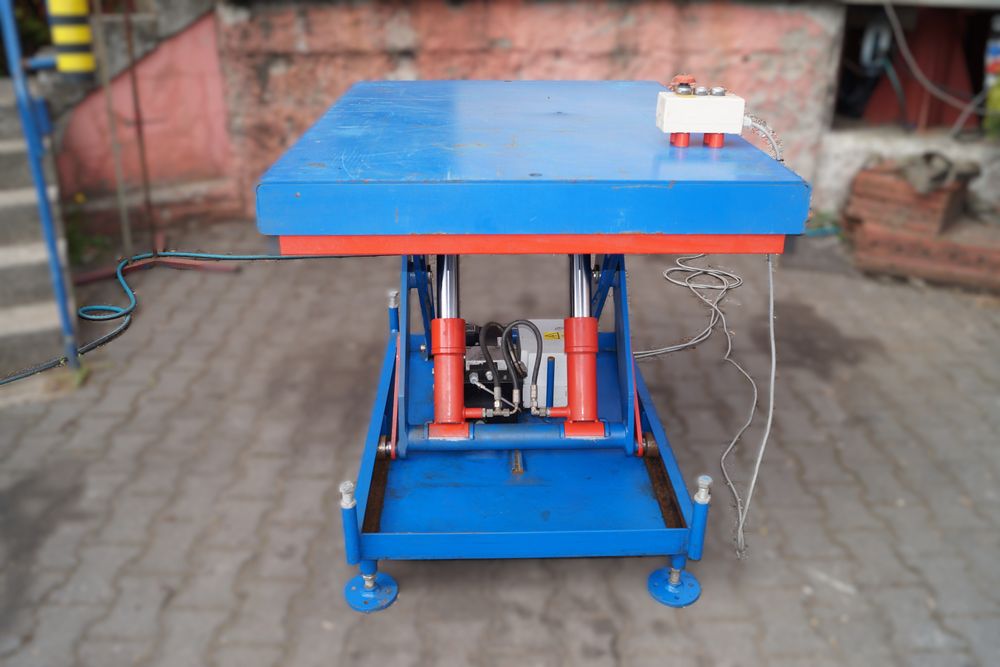

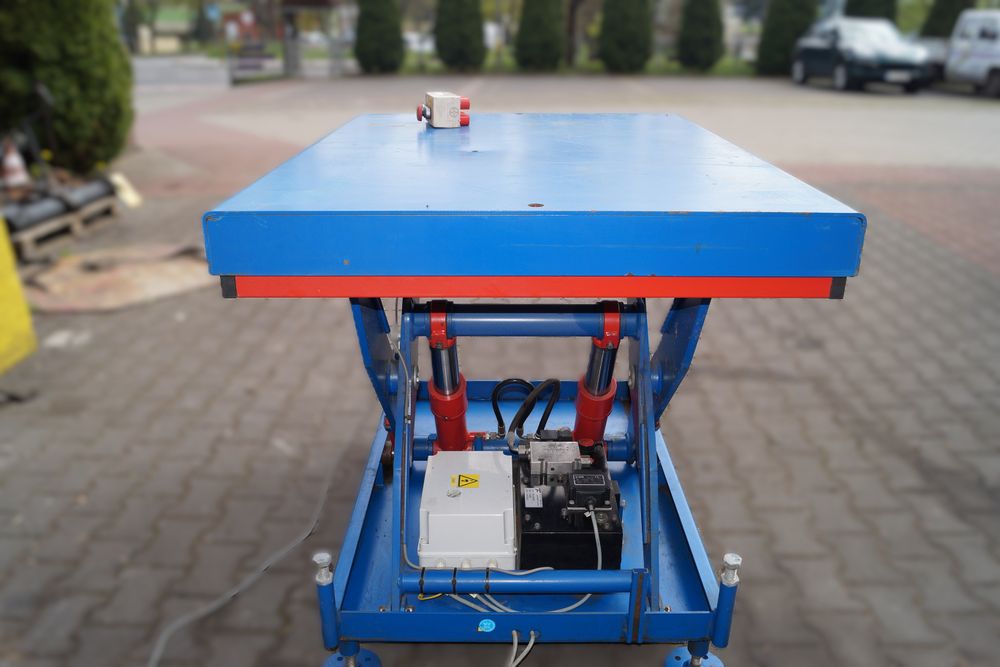

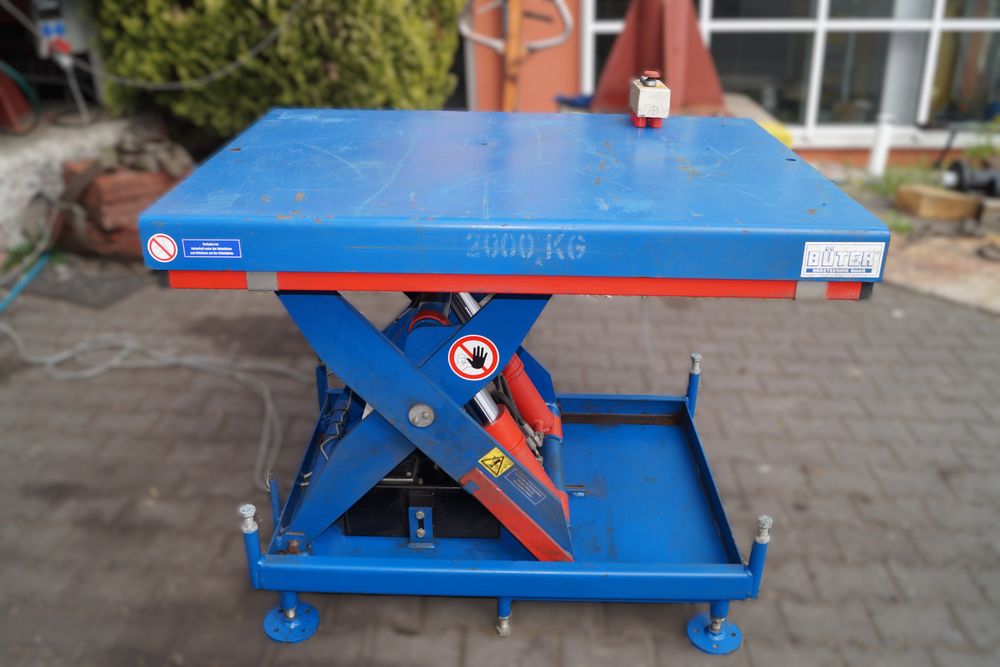

Büter Hebetechnik H 20-09 — lifting unit

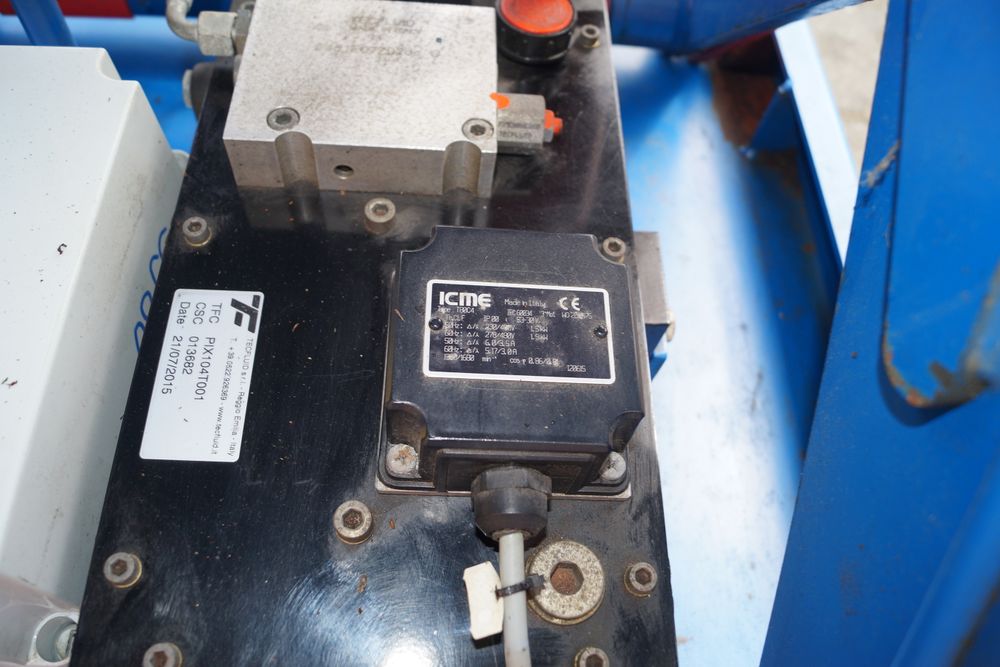

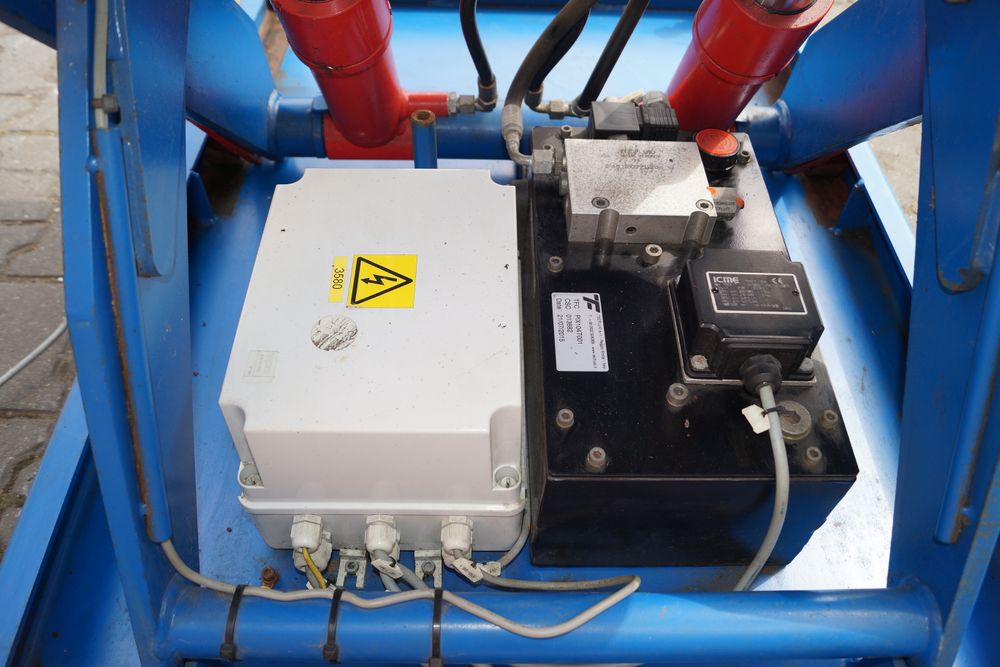

Device intended for lifts with a nominal load of 2000 daN; equipped with an electric drive and a hydraulic system.

Nominal load: 2000 daN (approx. 2040 kg / 2.04 t).

Do not exceed the nominal load of 2000 daN; take into account load distribution modes (1/1, 1/2, 1/3).

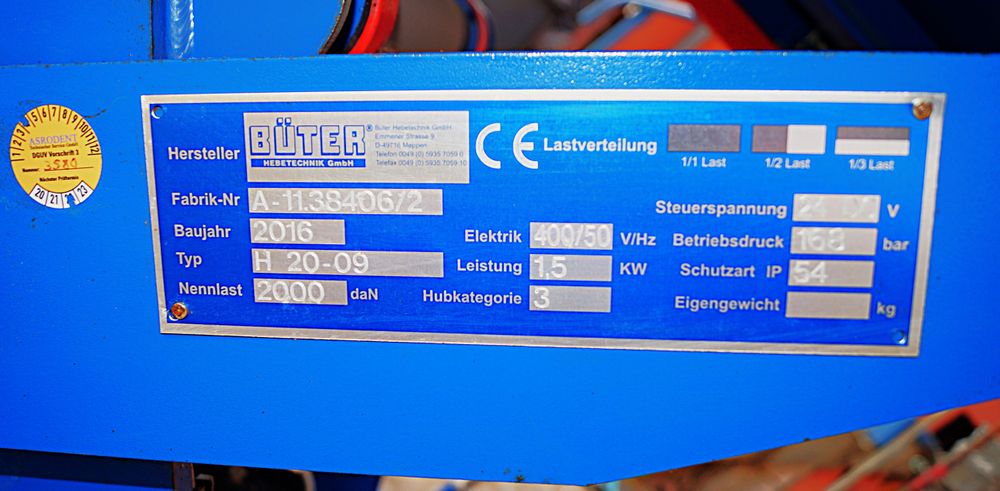

✅ Manufacturer: Büter Hebetechnik GmbH
✅ Serial number: A‑11.38406/2
✅ Year of manufacture: 2016
✅ Type: H 20‑09
✅ Nominal load: 2000 daN ≈ approx. 2040 kg / 2.04 t
✅ Lifting category: 3
✅ Power supply: 400 V, 50 Hz
✅ Motor power: 1.5 kW
✅ Control voltage: 24 V DC
✅ Working pressure: 168 bar (approx. 2436 psi)
✅ Degree of protection: IP54
✅ CE load distribution (Lastverteilung): 1/1, 1/2, 1/3
