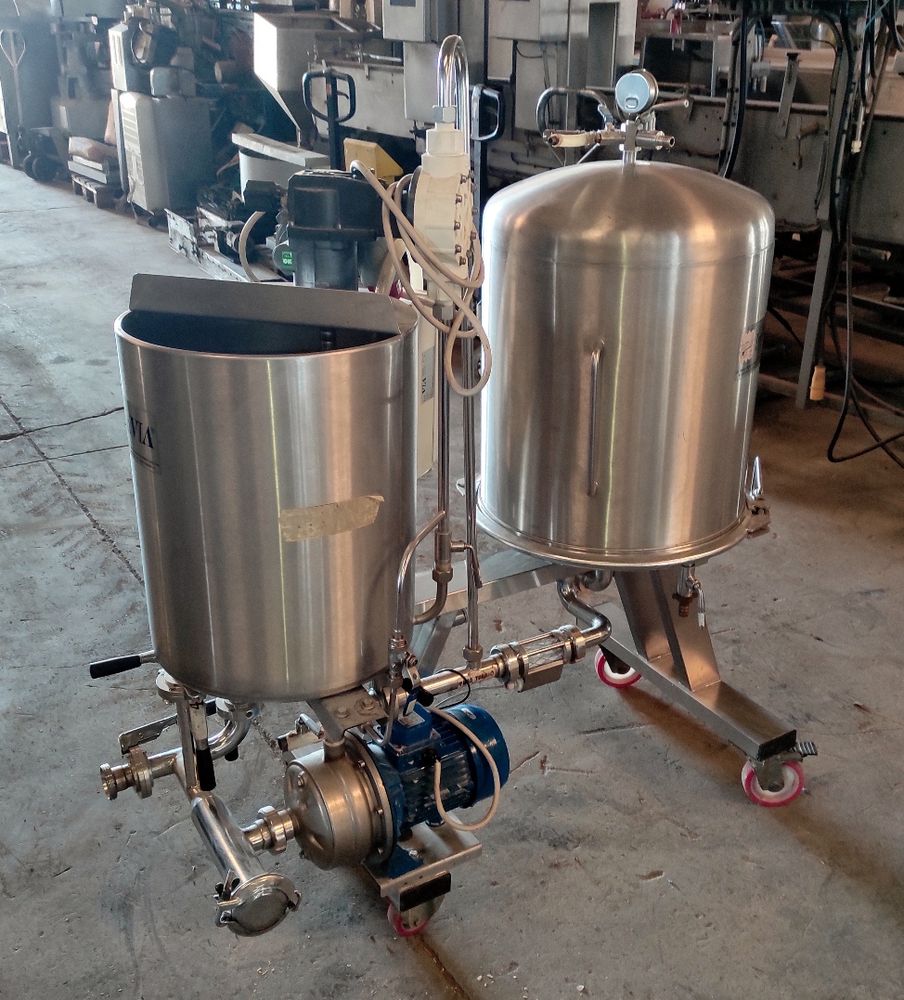

InVIA DCOM/3 DIATOMACEOUS EARTH FILTER

REF-0 INVIA DCOM/3 DIATOMACEOUS EARTH FILTER

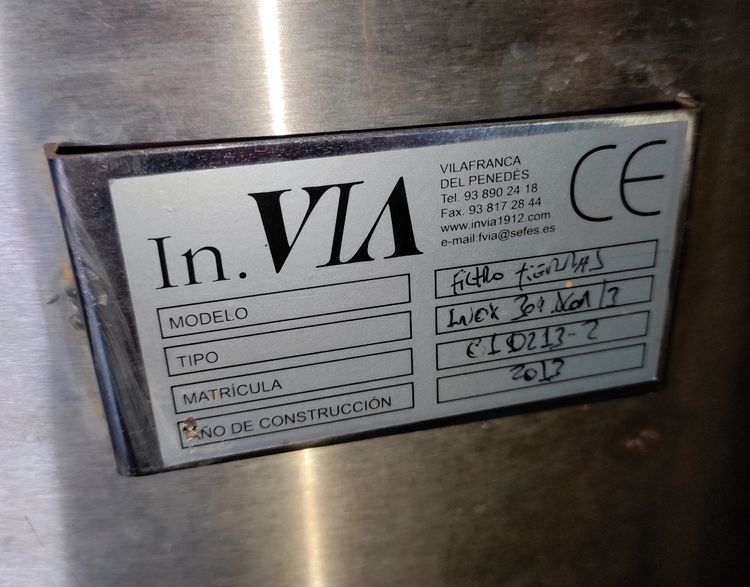

Brand: InVIA
Model: DCOM/3
Year: 2013

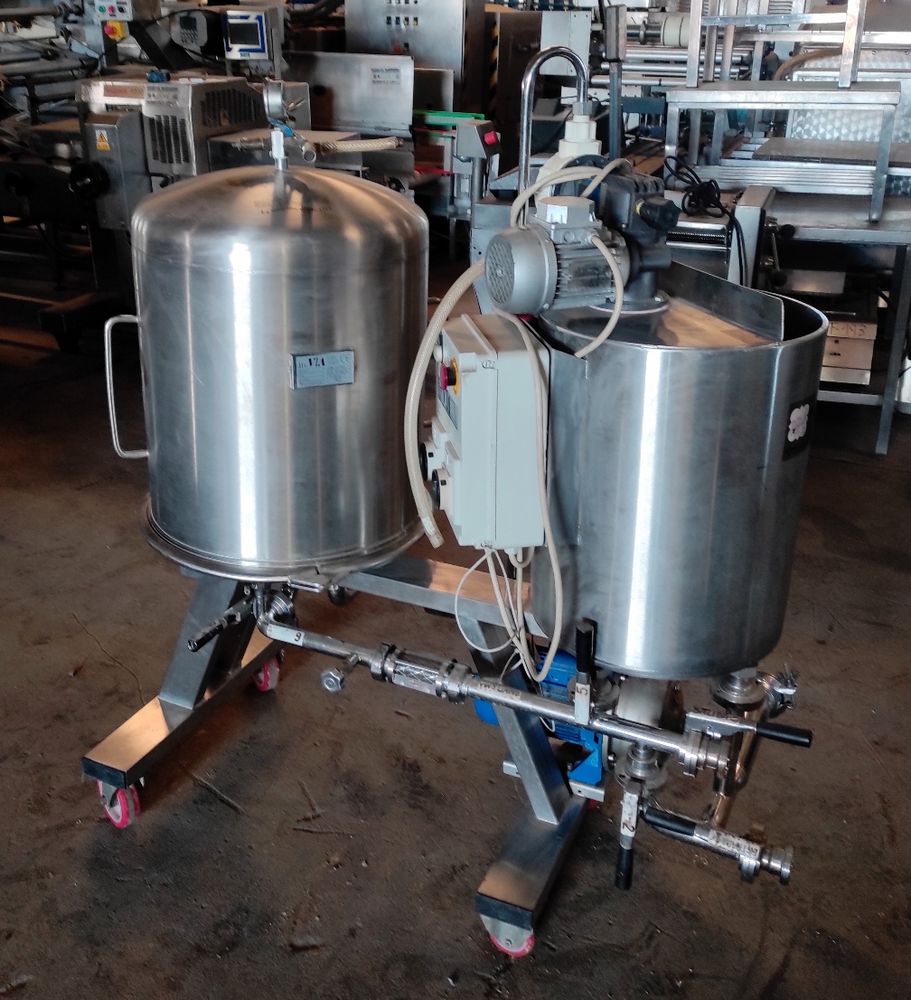

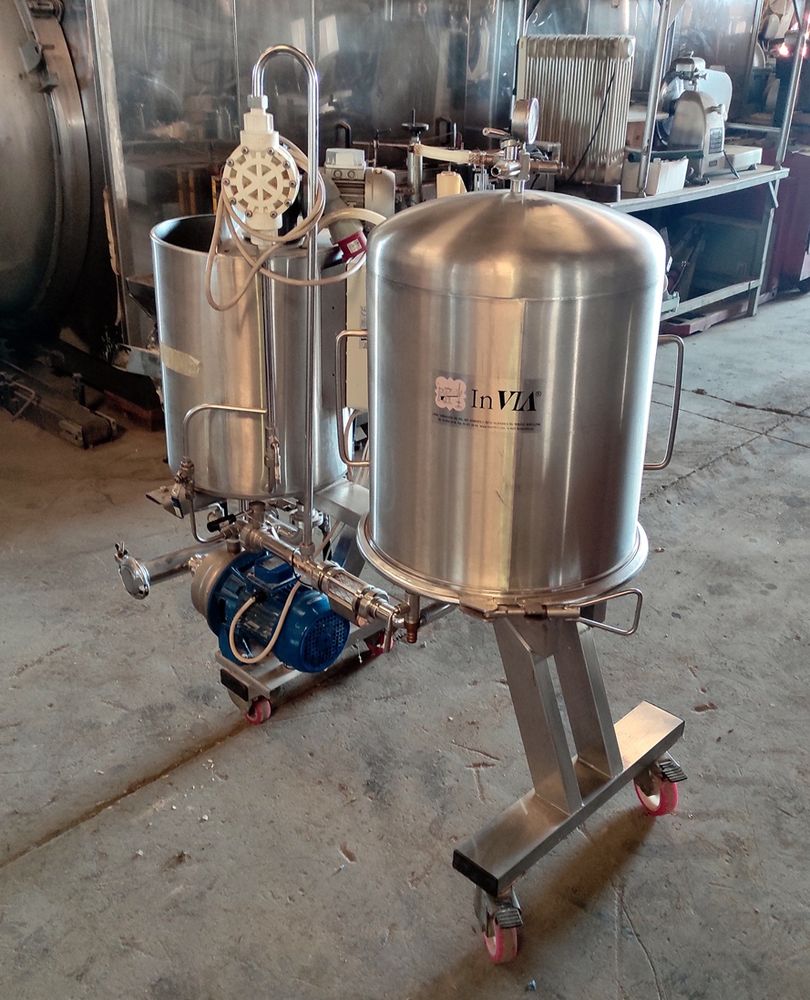

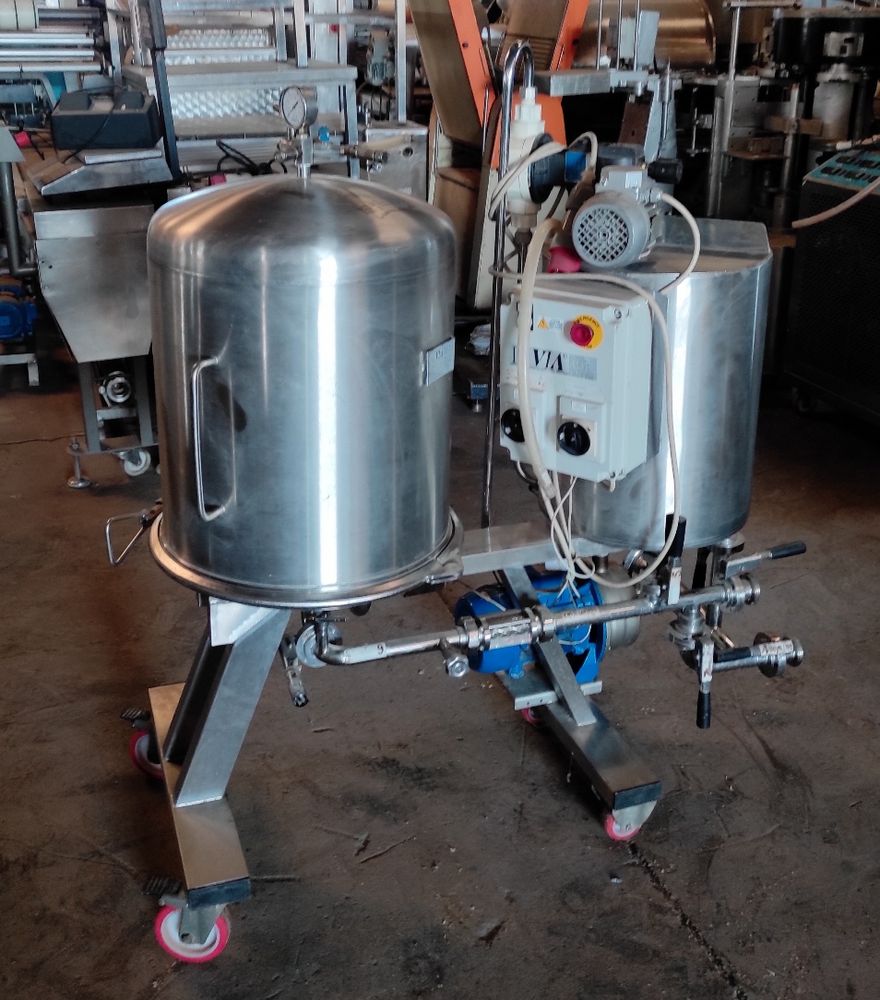

Mobile diatomaceous earth filter (kieselguhr filter) with manual backwash.
Suitable for the initial filtration and clarification of wine, beer and liquid food products.
All AISI 304 stainless steel.

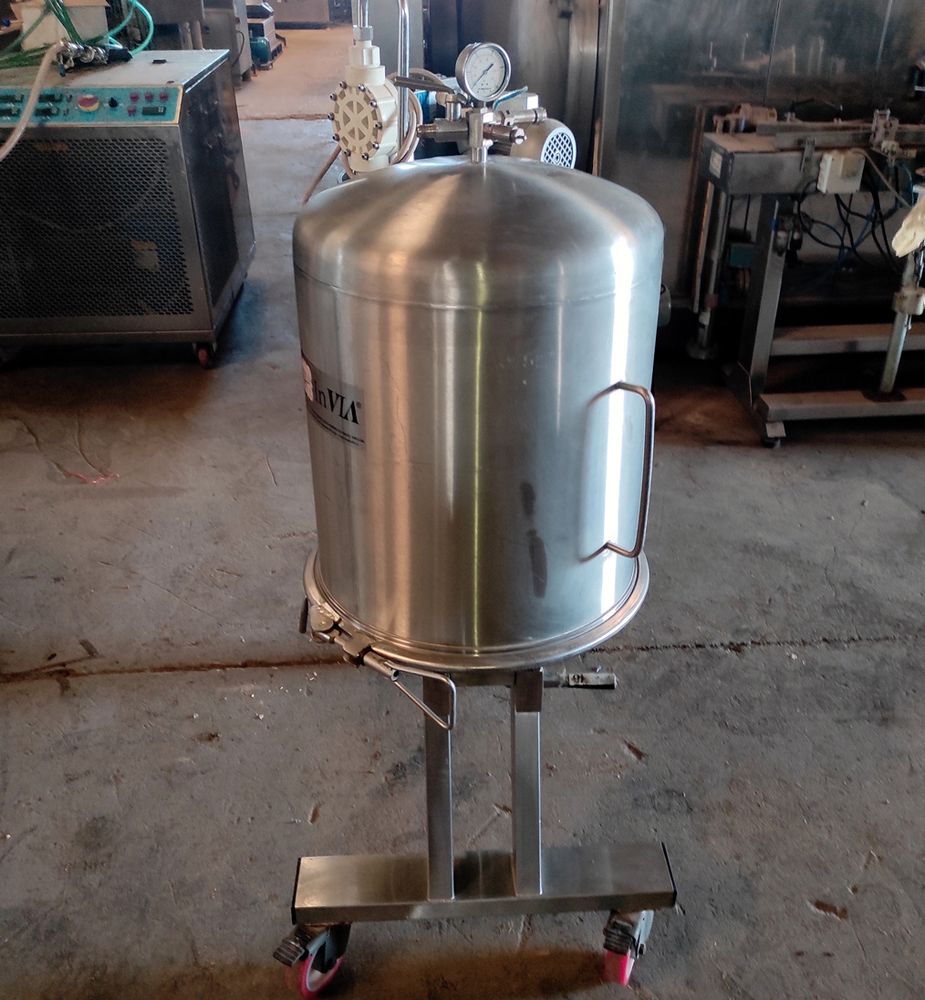

Filtering process through horizontal discs.

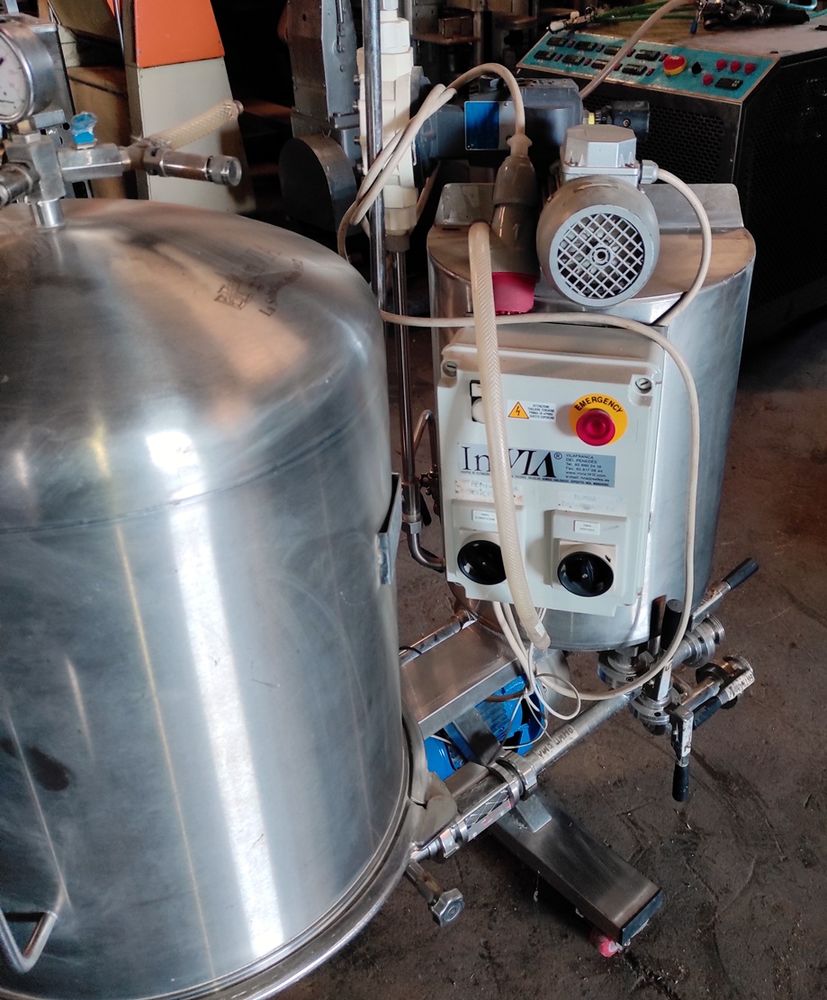

Equipped with a built-in dosing system with electric pump and flowmeter.

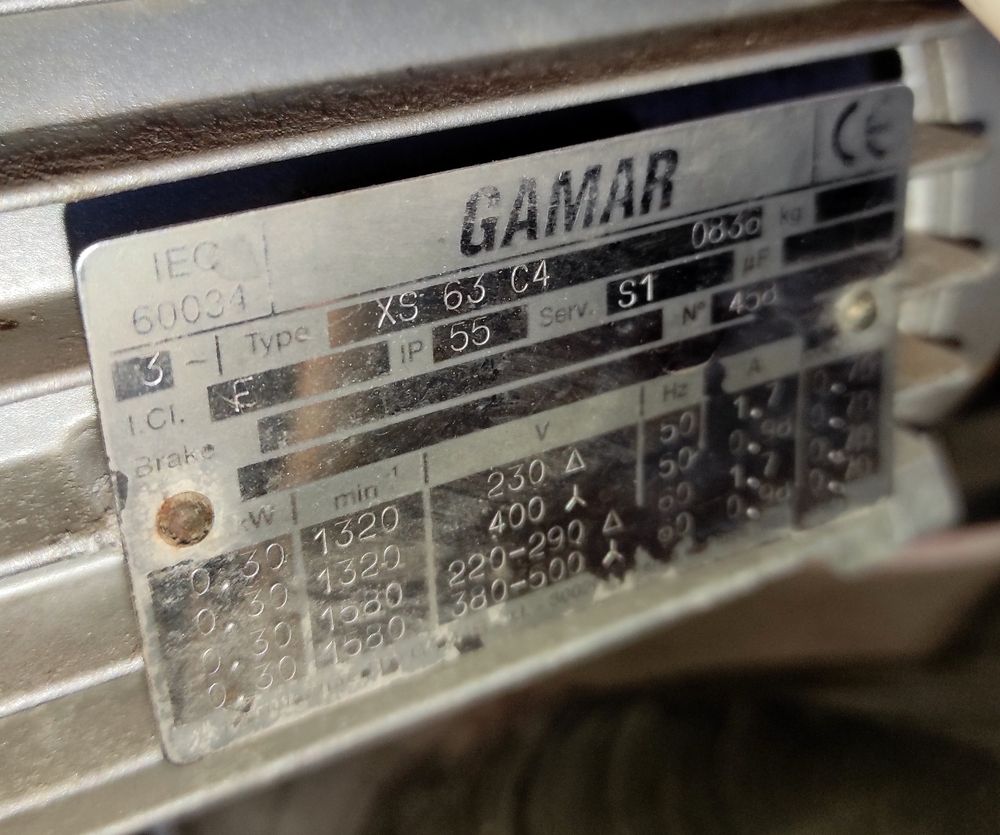

GAMAR diaphragm dosing pump (0.3 kW)

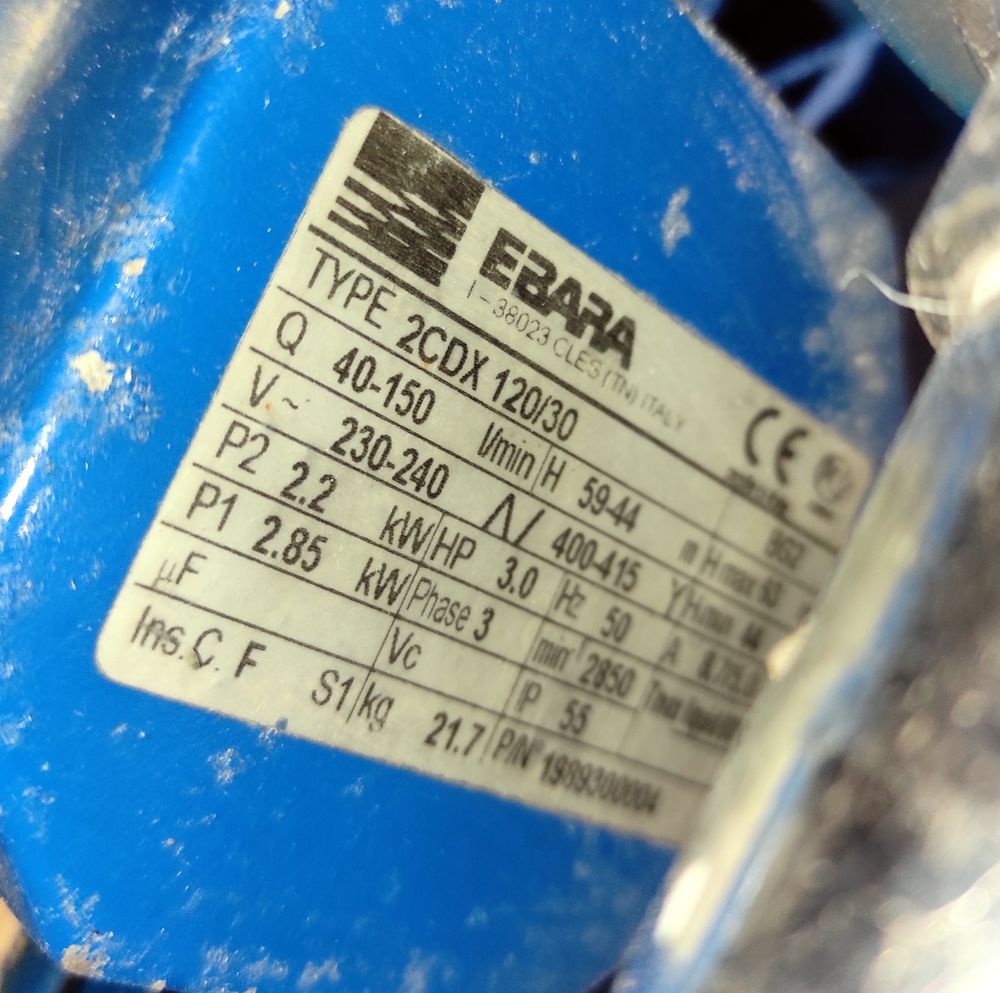

EBARA recirculation pump (2.2 kW)
Installed power: 2.5 kW
Voltage: 400 V/50 Hz
Filtering surface: 3 m2
Max. capacity: 8,000 l/h
Max. pressure: 6 bar
Operating temperature: 0 - 80 °C

Overall dimensions (mm): 1,200 x 650 x 1,500 (LxWxH)
Weight: approx. 210 kg
