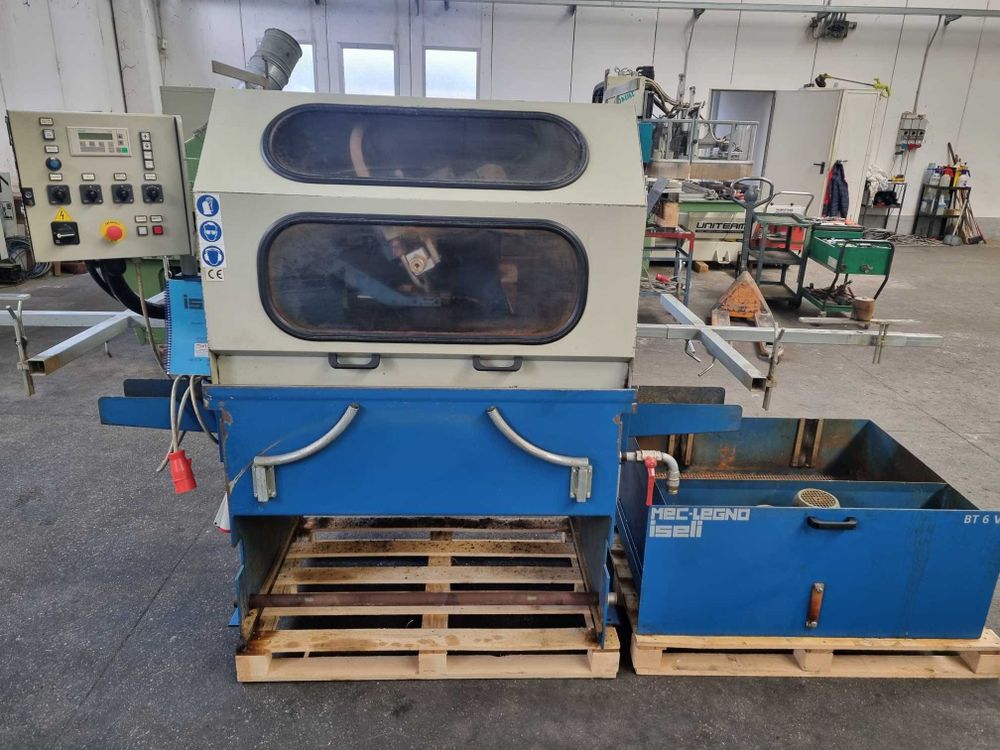

Iseli MEC-LEGNO BT6W

Water-cooled automatic sharpener for band saw blades
CE standard
grinding wheel diameter max 300 mm – adjustable rotation by inverter (2800 rpm max)
grinding wheel water cooling
tooth height min/max 6/20 mm
tooth pitch min/max 25/60 mm
front rake angle min/max 10/35°
blade width min/max 60/360 mm
blade lenght min/max 6000/14000 mm
sharpening speed adjustable by inverter from 20 to 40 teeth/min
panel control with program storage
user manual + CE certificate + spare parts manual + electric diagram
machine tested
overall dimension for shipment 2000x1900x1400h mm
weight 950 kg
