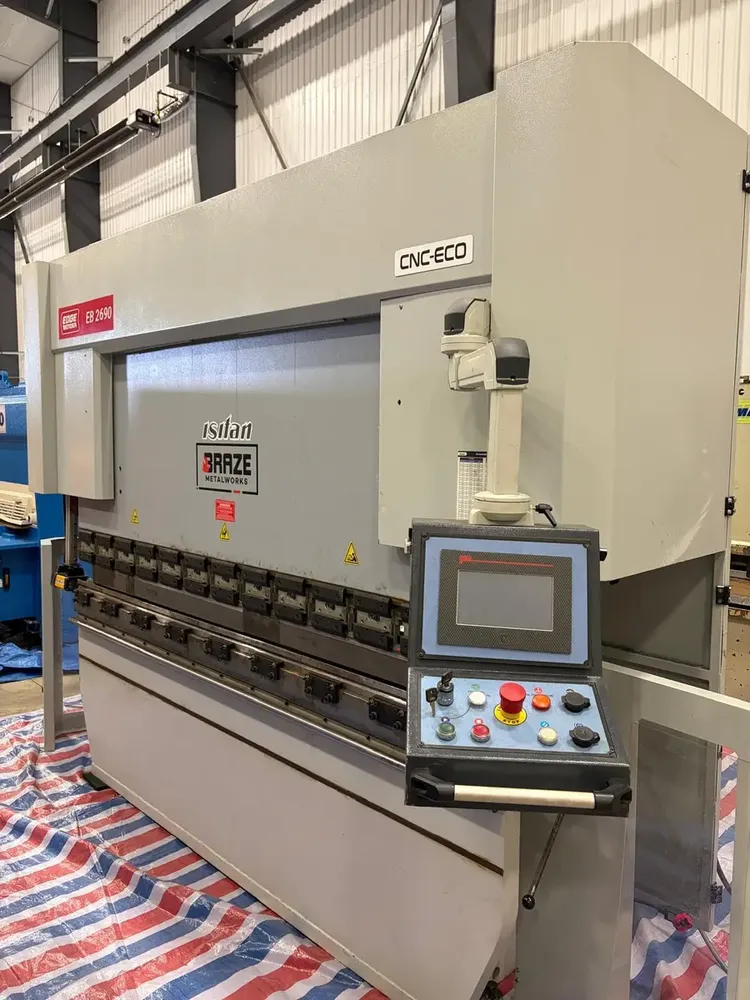

ISITAN EB2690 90 Ton

Press force: 90 Ton
Bending length: 2600 mm
Control: ESA CNC
Number of axes: 3
Free down speed: 140 mm/sec
Bending speed: 10 mm/sec
Return speed: 120 mm/sec
Stroke: 200 mm
Back gauge stroke (X): 600 mm
Back gauge stroke (R): Manual
Distance between housings: 2100 mm
Throat depth: 410 mm
Daylight: 450 mm
Crowning: Manual
Voltage: 575 V / 3 Ph / 60 Hz
Machine dimensions: 120" × 70" × 98"
Machine weight: 13,000 lbs
Double-cylinder upper table bending system
Steel frame construction
Durable balancing spindle
Eccentric bearings
Mechanical stroke-stop angle adjustment
Motorized angle control
Hydraulic overload protection
Double-speed working system
Safety foot pedal with emergency stop
REXROTH hydraulic unit
500-program ESA controller
USB program storage
Motorized X-axis back gauge
Linear guideways
PROMECAM quick-release upper die clamping
Floating control panel
Movable front support arms
Bottom die centering and fixing bolts
