Impianti, Isotex 230 Cm Coating range

WORKING WIDTH 2300MM

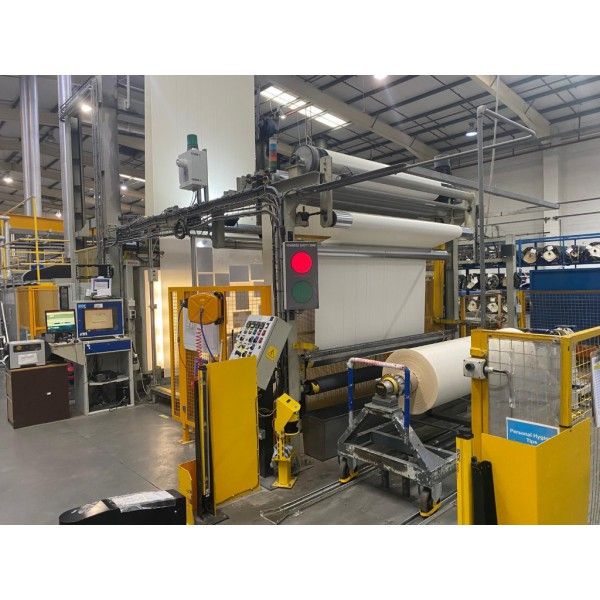

ENTRY IN FEED SECTION 2 - CENTRE UNWIND STATIONS FOR A - FRAME BATCHES.
1 BIRCH – MERROW TRAVERSING SEWING MACHINE.
1 INLET ACCUMULATOR 50 METERS FABRIC CONTENT
1 E+L CENTRALISOTEX COATING RANGE WORKING WIDTH 2300MM YEAR 2003 ENTRY IN FEED SECTION 2 - CENTRE UNWIND STATIONS FOR A - FRAME BATCHES.
1 BIRCH – MERROW TRAVERSING SEWING MACHINE.
1 INLET ACCUMULATOR 50 METERS FABRIC CONTENT
1 E+L CENTRALISING GUIDER
1 FINE TRIM LOAD CELL COMPENSATOR COATING

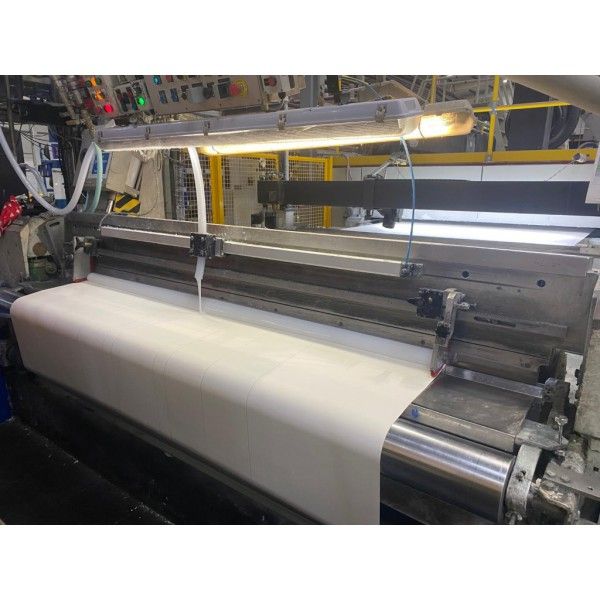

1 ISOTEX KNIFE OVER ROLLER COATING HEAD WITH THE OPTION TO COAT KNIFE OVER HOLLOW BED, OPERATORS PLATFORM, VIA 2 X 316 SS PATH ROLLERS,
ON TO ADJUSTABLE COATING ROLLER, MICRO ADJUSTABLE COATING HEAD WITH DOUBLE SIDED COATING BLADE,
TRAVERSING COMPOUND FEEDER, ADJUSTABLE SIDE DAMS,
AC VARIABLE SPEED DRIVE WITH AUTO MANUAL CONTROLS,
HIGH SPECIFICATION SAFETY INTERLOCKS IN ACCORDANCE WITH CE REGULATIONS. QUALITY COATING WEIGHT CONTROL SCANNING SYSTEM.
4 REINHARDT TECHNIK COMPOUND MIXING STATIONS TYPE ZFE 200L YEAR 2004

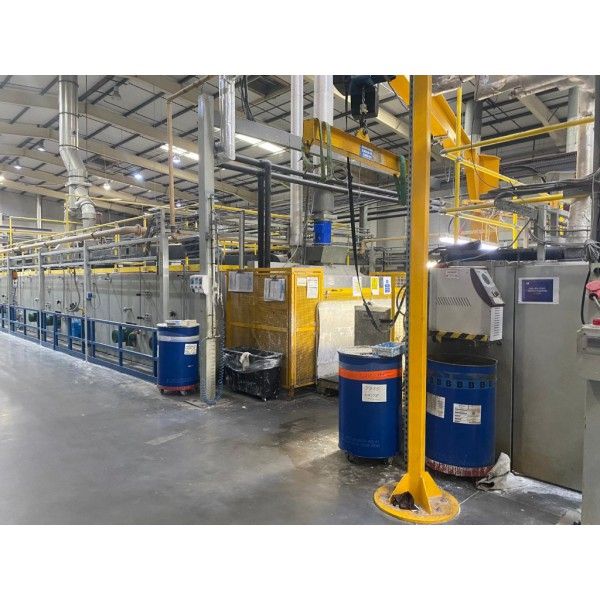

DRYING AND CURING ISOTEX SINGLE PASS DRYING OVEN 7 CHAMBERS DIRECT GAS HEATED
COMPLETE WITH EXHAUST SYSTEM. EXIT OUTLET SECTION 2- COOLING ROLLERS
1 E+L CENTRALISING GUIDER
1 FINE TRIM LOAD CELL COMPENSATOR 2 - OPERATORS PLATFORM ONE WITH INSPECTION BACK LIGHTING.

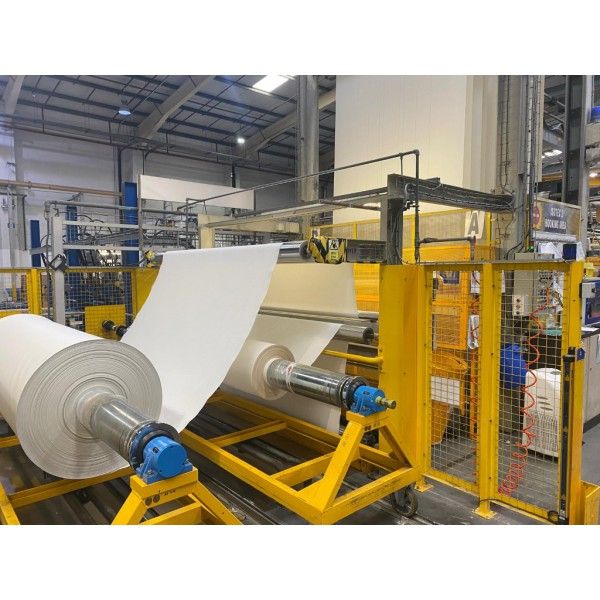

1 OUT LET EXIT ACCUMULATOR 50 METERS FABRIC CONTENT 1 - CENTRE RE - WIND STATION FOR A - FRAME BATCHES ISING GUIDER
1 FINE TRIM LOAD CELL COMPENSATOR COATING

1 ISOTEX KNIFE OVER ROLLER COATING HEAD WITH THE OPTION TO COAT KNIFE OVER HOLLOW BED, OPERATORS PLATFORM, VIA 2 X 316 SS PATH ROLLERS,
ON TO ADJUSTABLE COATING ROLLER, MICRO ADJUSTABLE COATING HEAD WITH DOUBLE SIDED COATING BLADE,
TRAVERSING COMPOUND FEEDER, ADJUSTABLE SIDE DAMS,
AC VARIABLE SPEED DRIVE WITH AUTO MANUAL CONTROLS,
HIGH SPECIFICATION SAFETY INTERLOCKS IN ACCORDANCE WITH CE REGULATIONS.
QUALITY COATING WEIGHT CONTROL SCANNING SYSTEM.
4 REINHARDT TECHNIK COMPOUND MIXING STATIONS TYPE ZFE 200L YEAR 2004 DRYING AND CURING ISOTEX SINGLE PASS DRYING OVEN 7 CHAMBERS DIRECT GAS HEATED COMPLETE WITH EXHAUST SYSTEM. EXIT OUTLET SECTION 2- COOLING ROLLERS
1 E+L CENTRALISING GUIDER
1 FINE TRIM LOAD CELL COMPENSATOR 2 - OPERATORS PLATFORM ONE WITH INSPECTION BACK LIGHTING.
1 OUT LET EXIT ACCUMULATOR 50 METERS FABRIC CONTENT 1 - CENTRE RE - WIND STATION FOR A - FRAME BATCHES Video
