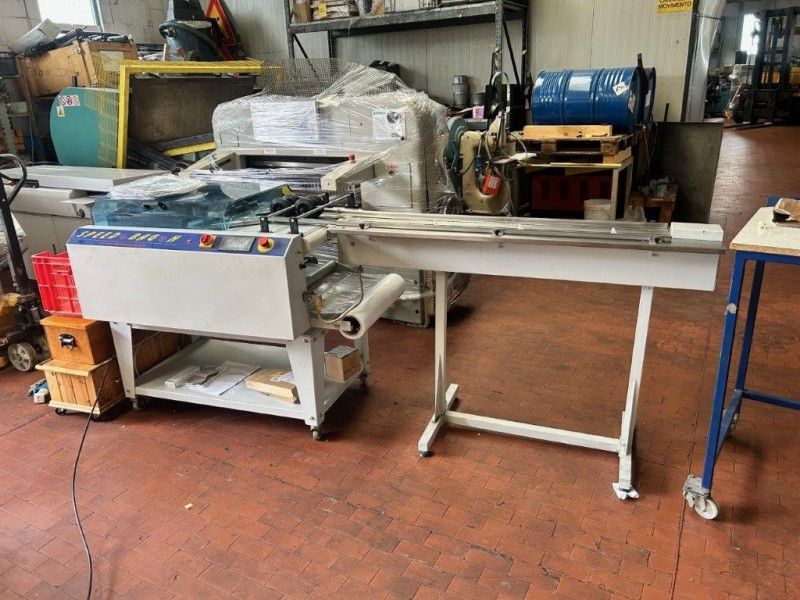

Italdibipack Speed bag H 297 x 210 x 10 mm Horizon bagging

Ideal for wrapping and mailing newspapers and magazines, catalogues and wholesale publications, and any commercial printed materials in A4 size in singlepack.
Half-automatic, easy to use: the only thing the operator has to do is simply to feed products horizontally onto the infeed conveyor belt that carries them towards the sealing area.
Here a special device will “clamp“ product and film together and push them through sealing and cutting operations.
A bag is formed around the product by the adjustable width folding plates.
The bag is then sealed and cut according to the product length.

-Power required: 2 KW, Power supply: 230 V – 50/60 Hz – 1 Ph
-Weight: 150 Kg
-Min wrapping size L x W x H: 150 x 105 x 1 mm
-Max wrapping size L x W x H: 297 x 210 x 10 mm
-Film roll width: 500 mm
-Output up to: 2400 pcs/h
-Horizontal feeding
-Automatic cycle controlled by PCB
-Display with touch sensitive controls
-Independent sealing-bars; sealing-time and temperature controlled by PCB
-Pneumatic movement, air-compressor outside
-Motorized film-unwinding
-Automatic product ejection
-Synchronous lugged motorized infeed conveyor belt on request
-The machine works with transparent or printed LLDPE (thickness 15 ÷ 40)
