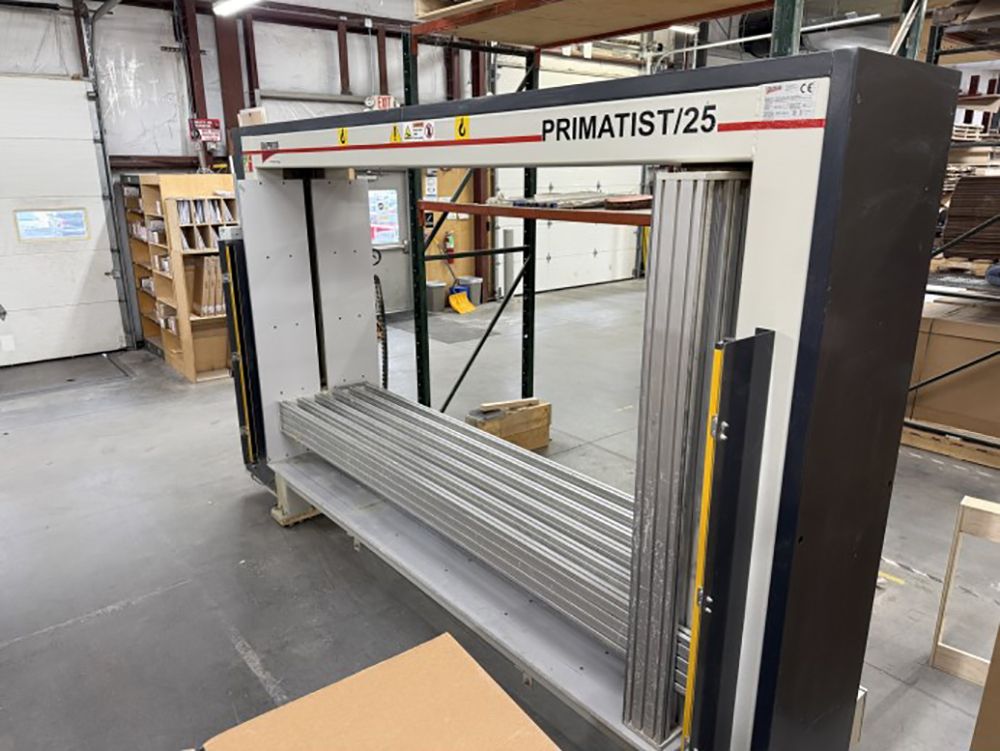

Italpresse Primatist/25 A

Used Automatic Case Clamp
Machine is 230 volt 3 phase. Low working hours – 390.
Wire safety panels are separate but included, comes with belt and pully spare parts.

Max. cabinet height 1,300 mm. (51”)
Min. cabinet height 250 mm. (9.85”)
Max. cabinet length 2,500 mm. (98”)
Min. cabinet length 250 mm. (9.85”)
Max. cabinet depth 700 mm. (27.5”)
Working height 400 mm. (15.75”)
Total installed power 1.5 kw

- Traveling horizontal and vertical interlaced beams are constructed of aircraft grade,
high tensile aluminum profiles for maximum rigidity and faced with thick PVC profiles
- Set-up free operation -motorized movement of both pressure beams
- Two speed movement of the beams – simultaneous fast closing with automatic slow down before making contact with the cabinet
- Manual and full automatic modes – one-touch push button controlled cycle activation in automatic
with selector to choose between vertical clamping first and horizontal second or visa versa.
- Clamping timer with automatic opening sequence
- Clamping beam spindles are driven by hydraulic motors with independent stepless adjustment of the horizontal
and vertical clamping pressure allowing for a wide range of clamping pressure settings and a smooth buildup of
pressure.
- Safety metal screens installed on rear side with a safety light barrier protecting the front of the machine
for maximum operator safety when working in full automatic mode
- U.L. approved electrical components
- 230 volts, 3 phase, 60 cycle
