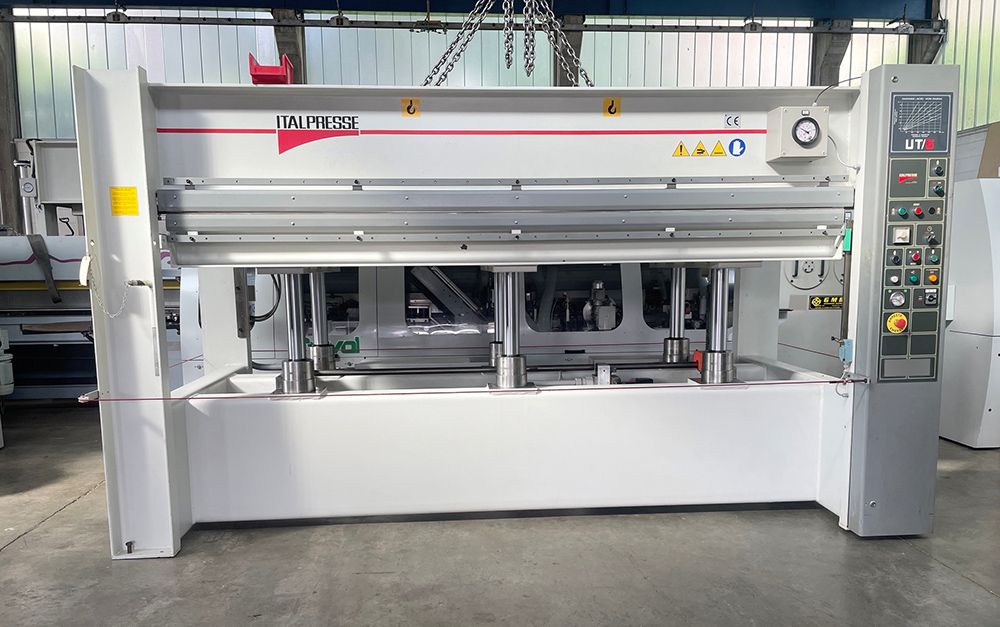

Italpresse UT/6

Hot press used
for the surfacing and veneering of particleboard, plywood, MDF, solid wood, or plastic laminates, as well as aluminium and other metals
The press platens consist of solid drilled steel plates
Platen size : 3000 x 1300 mm
Maximum opening mm. 400
Platen heating via diathermic oil with an electric boiler, complete with a circulation pump
Boiler 27 kW – 380 V
Power selector switch: 50% boiler power (13,5 kw) in posizion I, or 27 % power ( XNUMX kw) in posizion II
Pressing time serup with automatic opening
Max pressure 300 bar
Exclusion of 2 lateral cylinders via the control panel
Protective Mylar film on the platens
Machine dimensions: mm. 3700 x 1700 x H. 2100
weight kg. 6600
to CE standards
