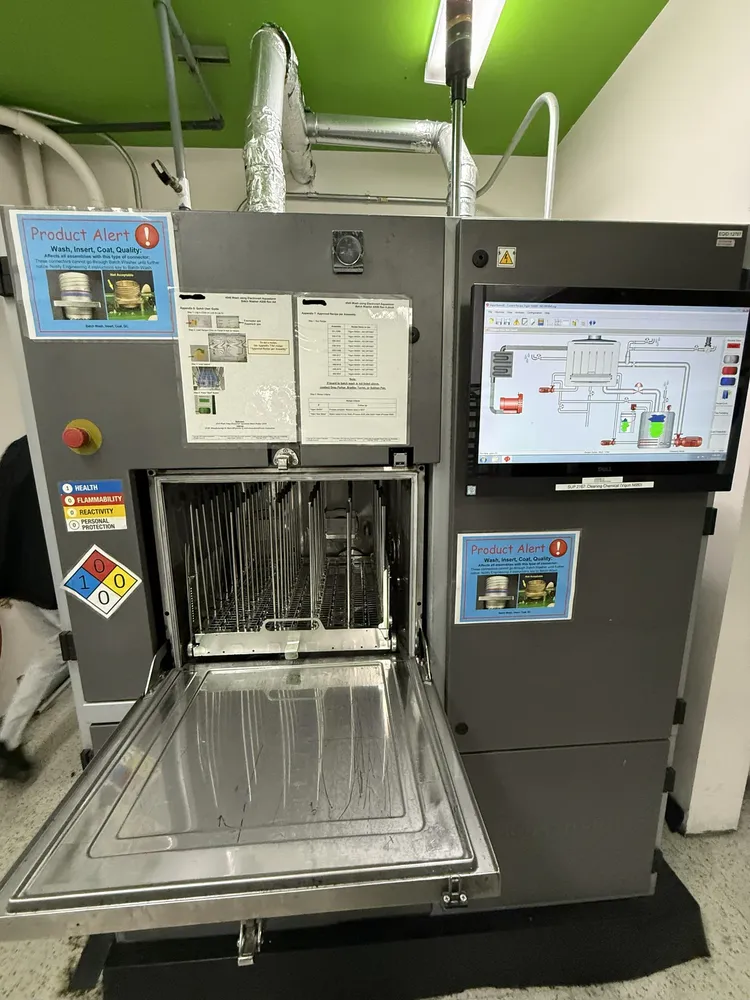

Electrovert, ITW Aquastorm 50 Batch Cleaner

Touch screen PC with Windows®-based operating system and data logging
· Industrial grade materials and construction
with stainless steel plumbing in process area
· Top and bottom rotating spray bars for Flood Wash and Rinse
· Independent top and bottom spray bars for Final Rinse
· Capable of 82°C (180°F) in Wash and Final Rinse
· Closed Loop Wash
· Integrated chemistry container storage with level sensor
· Chemical Metering Pump
· Torrid Zone Forced Convection Drying
· Programmable Light Tower
· User friendly graphical user interface that offers
user defined recipe and cleaning cycles creation
(time and # of cycles for Wash, Power
Wash, Rinse, Final Rinse, and Dry)
· Software selectable between a straight DI
or Chemistry application
· ESD grounding plug for operatorlines
· Designed to comply with UL Factory Automation Equipment,
Power Clean Basket Technology
· Power clean basket technology includes a dedicated pump
that feeds multiple JIC sprays that create a web of
Omni-directional dynamic energy to remove flux residue
· A chemical isolation feature is standard with the power clean basket technology
· All stainless steel construction

Torrid ZoneTM Drying System
· Utilizes mixed technologies for on-board convection
drying in a batch footprint
· Capable of temperature set-points up to 149°C (300°F)
· Based upon Aquastorm 200 proven designs and reliability
· Typical performance includes drying complex assemblies
to within .1g of prewash weight

Dims: 969 mm (38.1 in) x 1527 mm (60.1 in) x 1826 mm (71.9 in)
