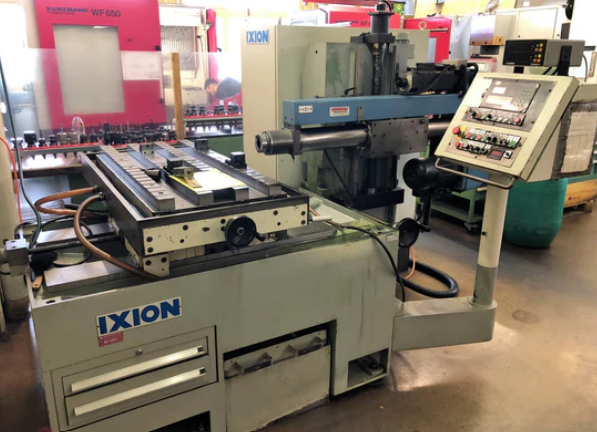

Ixion TL 600 NC 1 4000 RPM
Ref :
2805765-3-CP
Condition :
Used
Manufacturer :
Ixion
Model :
TL 600 NC 1
Spindle Speed :
4000 RPM
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Control: ELAU PT1
Max. drill depth: 600 mm
Drill capacity in steel: 18 mm
Spindle stroke: 600 mm
Table size: 1375 × 700 mm
Table rotation: 360°
Table load capacity: 2000 kg
X-axis travel: 700 mm
Y-axis travel: 500 mm
Spindle speed: up to 4000 RPM
Spindle nose: SK40
Spindle motor: 2.3 kW
Power supply: 3 × 380 V, 50 Hz
Machine weight: 2800 kg
Machine dimensions: 4500 × 1800 × 2700 mm
Drill chuck
Drill chuck with internal cooling
2-axis digital readout
Coolant system
