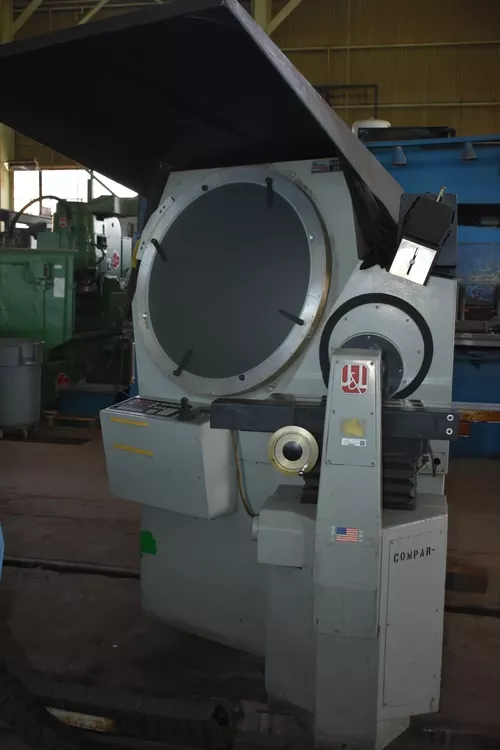

J&L METROLOGY CLASSIC 30S

X-axis travel 8 in
Y-axis travel 6 in
Quadra-Chek 2000 programmable 2-axis digital readout
Surface illumination
20X lens
50X lens
6-position power lens turret
Joystick power table control up/down left/right
Screen diameter 30 in
Table width 6 in
Table length 30 in
Measuring range horizontal 8 in
Measuring range vertical 6 in
Lens centerline to table minimum 2.25 in
Lens centerline to table maximum 8.25 in
Helix rotation left and right 10 degrees
Electrical system 115V 1-phase 60Hz
Floor space required 72 × 122 in
Overall height 82 in
Weight approximately 4200 lb
