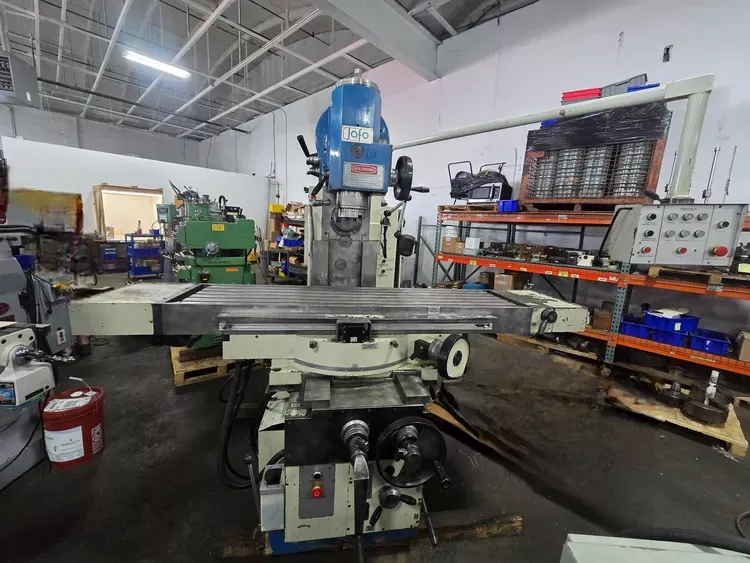

Jafo FWR 40J2 UNIVERSAL HORIZONTAL MILL 2500 rpm

X-Axis Travel: 39.37"
Y-Axis Travel: 13.78"
Z-Axis Travel: 19.69" (500 mm)
Table Width: 15.75"
Table Length: 55.12"

Spindle Taper (Horizontal): ISO 50 DIN 2080
Spindle Speed (Horizontal): 56-1800 rpm, 16 gear steps
Spindle Taper (Vertical): ISO 50 DIN 2080
Spindle Speed (Vertical): 70-2500 rpm, stepless adjustment

Power: 9.8 hp
Machine Dimensions: Length: 86.61", Depth: 102.36", Height: 82.68"
Machine Weight: 7,936.63 lbs
Motorized Overarm with own spindle drive
Uni-Swivel Head (J2)
Stepless Feeds Adjustment
Boring Head: 2 x 90° swivel
Max Quill Travel (Z'): 150 mm
Table Turning Angle: 45°
Control: Manual and mechanical
Digital Screen: Wizard 3
Power Needed: 3x380V
Includes Coolant Pump
Includes Various Tooling
