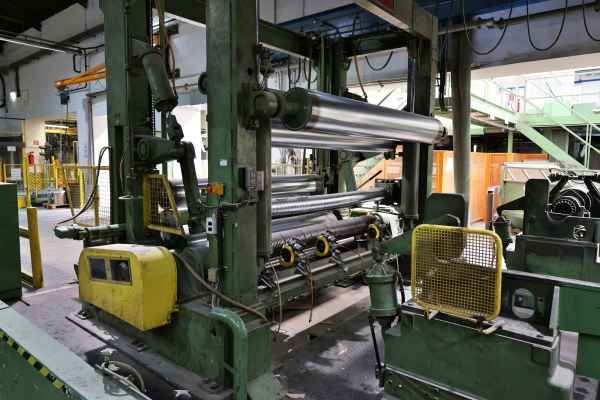

Jagenberg 2400 mm Varidur 33-15

Ref : 2403854-2-CP
Condition : Used
Manufacturer : Jagenberg
Width : 2400 mm
Type : Varidur 33-15
Year(s) : 1975
Quantity : 1
Location : Seller or machines location:
EUROPE (Central and Eastern)
Last check : 24 Jun. 2022

Varidur 33-15
Working width: 2400mm trim
- Narrowest cutting width normal: 100 mm
- Number of knives: 8 standard knives
Diameter of the reel:
- Maximum: 1525 mm
- Minimum: (mechanically ejectable): 350 mm
- Smallest outer diameter of the winding tubes: 90 mm
- Dimensions of Carrier Drums: 2550mm x 410mm
- Bale length of the support rollers = working width +: 150 mm
- Dimensions of Knife Drums: 2580mm x 230mm
- Dimensions of the Loading Press Roll: 2550mm x 300mm
- media it was processing: coated and un-coated cardboard, 300 to 900 g / m²
- Working speed: 300m/min (upgrade possible)
- Voltage: 400V
- Grammage range: 300 - 900 gsm
- Working pressure max.: 6 bar
- Paper grade: coated and un-coated cardboard
- Dimension Carrier Drums: 2550mm x 410mm
- Dimension Knife Drum: 2580mm x 230mm
- Dimensions Rider Roll: 2550mm x 300mm
