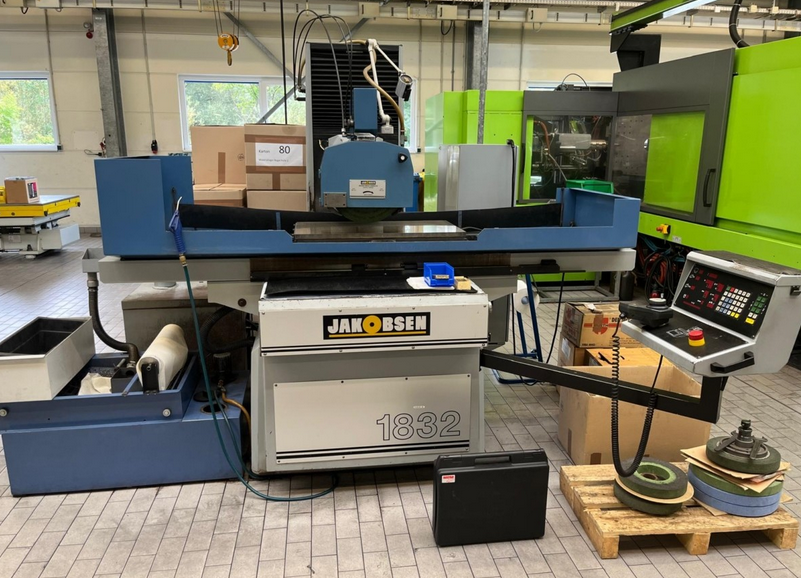

Jakobsen 1832 AC 16006

Price:

JAKOBSEN 1832 AC 16006
2001

Grinding length 800 mm
Grinding width 500 mm
Workpiece height 475 mm
Table size 800 x 450 mm
Longitudinal feed 900 mm
Hydraulic feed stepless 30 m/min
Cross feed automatic 1–30 mm
Vertical feeds 1–99 µm
Rapid traverse vertical 0.3 mm/min
Grinding wheel dimensions 350 x 50 x 125 mm
Grinding spindle drive 7.5 kW
Total power requirement 9.37 kW
Weight 2.9 t
Dimensions 4 x 2.7 x 2 m

Electric 380 Volt
Magnetic plate
Coolant system with paper belt filter 30 l/min, 160 l
Grinding wheel flanges
Machine feet
Operation panel
Electronic hand wheel
Grinding wheels (various)
Hydraulic surface grinding with AC control
Automatic surface and plunge grinding
Automatic intermediate dressing with compensation
Various infeed rates for roughing and finishing cycles
Hydraulic longitudinal table movement
Servo-controlled transverse movement
Hardened precision ball screw
Automatic lubrication longitudinal and transverse
Automatic vertical infeed via stepper motor with digital display
Dressing device manual or automatic
Electro-permanent magnetic chuck with automatic demagnetization and holding force control
Automatic spark-out
Rapid vertical adjustment
