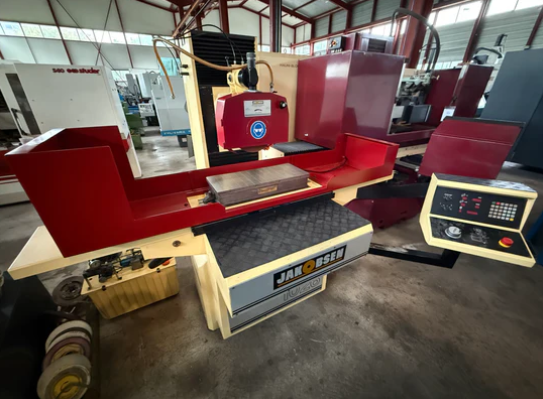

Jakobsen SJ 1026

Table length: 800 mm
Table width: 250 mm
Grinding length: 800 mm
Grinding width: 300 mm
Max distance table to spindle centerline: 550 mm
Longitudinal travel (X): 900 mm
Transversal travel (Y): 310 mm
Automatic crossfeed stepless up to: 6 m/min
Automatic crossfeed from: 2 mm
Automatic crossfeed up to: 30 mm
Table speed stepless from: 0 m/min
Table speed stepless up to: 30 m/min
Grinding wheel diameter: 350 mm
Grinding wheel width: 40 mm
Grinding wheel bore: 127 mm
Grinding wheel speed from: 1400 rpm
Grinding spindle motor: 4 kW
Total power required: 6.6 kW
Voltage: 3x 380 V 50 Hz
Machine weight: 1800 kg
Overall length: 3350 mm
Overall width: 1870 mm
Overall height: 1900 mm
Magnetic plate length: 600 mm
Magnetic plate width: 255 mm

Features / Equipment
Paper filtration system
Magnetic plate
Grinding wheel with flange
Balancing arbor
Balancing support
