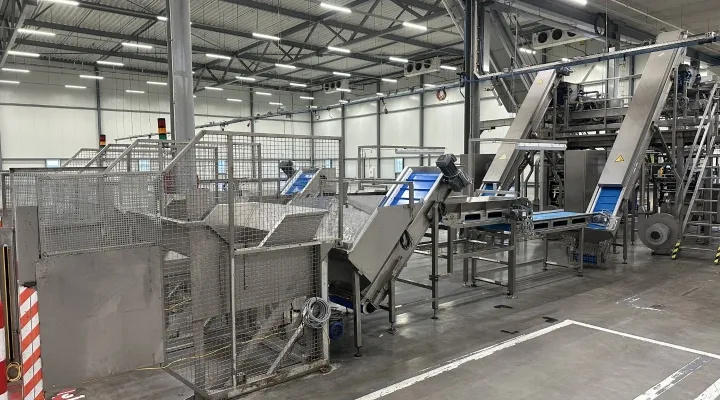

Jasa double packaging line

2x Stainless steel box tipper

Suitable for bins of 100 x 120 x 100 cm
Complete with safety fence and entry protection

2x Stainless steel elevator conveyor with dosing conveyor

Elevator conveyor: 185 x 59.5 cm
Effective width: 57.5 cm
Cleats: 2 cm high
Cleat spacing: 15 cm centre-to-centre
Dosing eye at both the infeed and discharge side of the elevator conveyor
Dosing conveyor: 145 x 60 cm
Dosing eye at discharge side

2x Stainless steel inspection conveyor
Inspection conveyor: 220 x 57.5 cm
2 sorting channels
Lighting

2x Stainless steel elevator
Elevator: 550 x 40 cm
Effective width: 37 cm
Cleats: 2 cm high
Cleat spacing: 15 cm centre-to-centre

2x Stainless steel infeed shaker
Infeed shaker width: 49 cm
Screen opening: 18 mm

1x Waste discharge conveyor 565 x 19.5 cm beneath the shakers

2x Newtec 2009PC-23 multihead weigher with 9 weighing heads
Weighing buckets: 10 x 12 x 20 cm
Suitable for batches up to 1 kg
Suitable for smaller products such as green beans, Brussels sprouts, radishes, baby potatoes, nuts, etc.
Previously used for green beans, Brussels sprouts and radishes
Radishes:
Batch weights from 100 to 200 grams
Up to 42 batches per minute (per weiging machine)
Brussels sprouts:
Batch weights from 300 to 500 grams
Up to 42 batches per minute (per weiging machine)
Batch weights from 500 to 1,000 grams
Up to 20 batches per minute (per weiging machine)
Year of manufacture: 1993 & 2006
Including large platform for 2 weighers, complete with stairs

2x Rotodyne leaf blower
2x Jasa J250FV vertical flowpack machine

Very extensive manufacturer update by Jasa, valued at approximately €30,000 excluding VAT. The following components have been renewed:

• Latest Siemens PLC and software
• Control system available in multiple languages (see photo with flags)
• New valve island
• New heating elements
• New encoder (film sensor)
• New electrical control cabinet

Including 2 forming sets (per flowpack machine):
Forming set 1:
Tube diameter: 8 cm
Shoulder width: 34 cm
Forming set 2:
Tube diameter: 12.5 cm
Shoulder width: 44 cm
Seal jaw width: 27 cm
Maximum film width: 60 cm
Year of manufacture: 2006 & 2007
With Videojet Dataflex 6320 printer
With Gekko 140 labeller
Maximum label width: 14 cm

2x Loma IQ3 metal detector

Plastic modular conveyor belt: 255 x 30 cm
Opening height: 20 cm
Suitable for detecting:
Ferrous metals (Fe), such as steel and iron
Minimum detection sensitivity:
1.2 mm for dry/frozen products
1.5 mm for frozen/slightly moist products
2.0 mm for conductive/wet products
Non-ferrous metals (NFe), such as copper, aluminium, brass and phosphor bronze

Minimum detection sensitivity:
1.2 mm for dry/frozen products
2.0 mm for frozen/slightly moist products
2.5 mm for conductive/wet products
Stainless steel (304 S/S)
Minimum detection sensitivity:
2.0 mm for dry/frozen products
3.0 mm for frozen/slightly moist products
4.5 mm for conductive/wet products

2x Stainless steel rotary table

Diameter: 120 cm
With a raised edge
