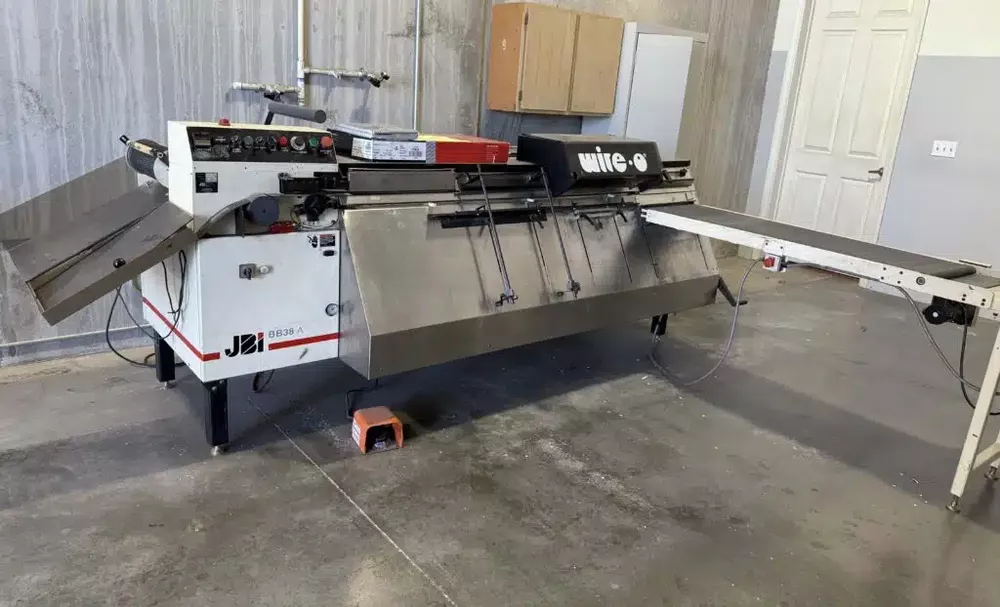

JBI BB38A

Wire O Machine
Mechanical Speed: 1,800 Cycles per Hour
1,000 Books per Hour
Max Wire Capacity: 1″
Min Wire Capacity: 3/16″
Max Book Thickness: 7/8″
Min Book Thickness: 1/8″
Max Binding Edge: 15″
Min Binding Edge: 3.5″
Electrical Requirements: 110V, 60Hz
Air Requirements: 80 PSI @3.2CFM
Automatically Cuts Wire to Paper Length
Automatically Positions Wire Element for Loading
Operator Simply Places Book on Wire Elements
Automatically Closes the Wire

Key Specifications:
Speed: Up to 1,800 cycles/hour (~1,000 books/hour)
Wire capacity: Accepts binding wire from 3/16″ (min) up to 1″
Book thickness: From 1/8″ (min) to 7/8″ (max)
Binding edge length: 3.5″ (min) to 15″ (max)
Power: 110 V, 60 Hz, with 80 PSI air requirement at ~3.2 CFM

Features & Workflow:
Semi-automatic operation: Automatically cuts wire to the required length and places it for loading.
The operator simply positions the book, and the machine closes the wire.
Infeed & Outfeed conveyor support: Enables smoother material handling and better throughput in production settings
