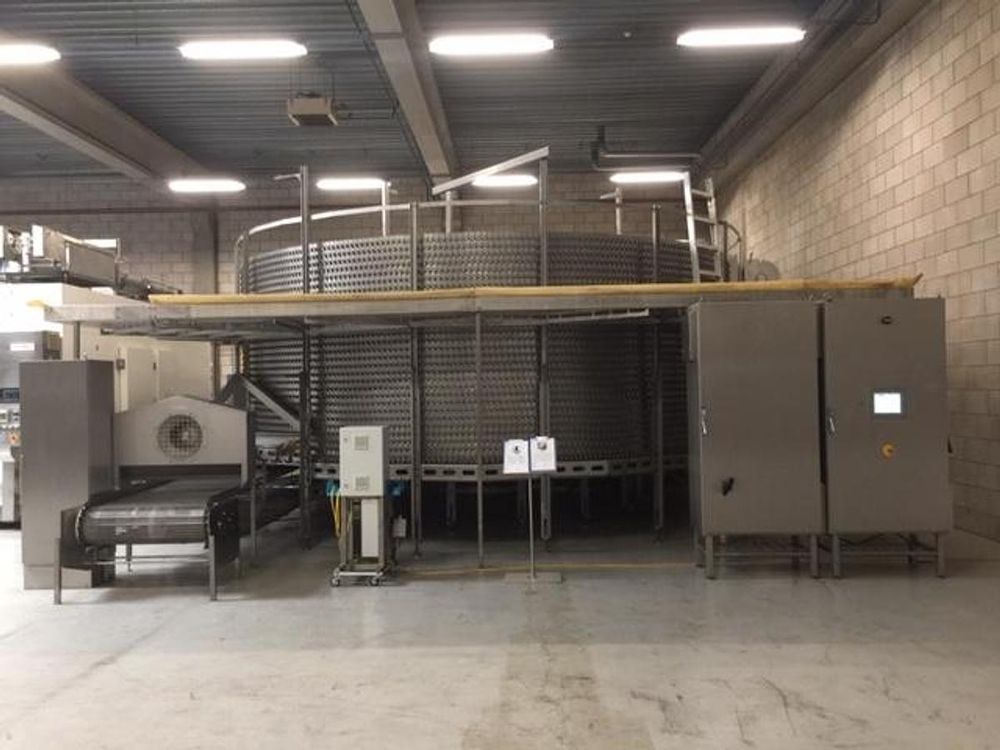

Frigoscandia, JBT GYRoCOMPACT M10/3+1-08-30-29+9-NW-CR-SD

Spiral Freezer.
This spiral freezer is in excellent condition
(maintained by Frigoscanida/JBT via a maintenance contract, 37,000
(business hours) is designed for a production
capacity of approximately 3,000 kg/h based on freezing
dough products from an input temperature of +25 °C to an core temperature of -18 °C. With this spiral freezer it is
possible to reach a freezing capacity of 4,000 kg/h of products, depending on the product data, by
use the 4th extra cooler that is usually on standby (sequential defrost) for extra cooling capacity
(520 kW)

Specifications freezer:
Coolant type:
CO2/R717 Ammonia
Input/output: north/west (if desired we can deliver in a north/south- or north/north-configuration)
Rotation direction of the belt: clockwise
Gross/net width: 1070 mm/1040 mm
Maximum product height 65 mm
Number of layers: 30 (17.5 m² per belt = 525 m² total belt area), belt length 615 m
4 galvanized evaporators with a maximum operating pressure of 75 bar (suitable for CO2/ammonia) block volume 513 L/each: 3
rotating evaporators and one in defrost cycle (sequential defrosting) that can be used for 48 hours of production
Stainless steel control cabinet with all necessary frequency controllers, relays and Siemens S7 PLC / Simatic
touchscreen control
CIP cleaning system, brand Frigoscandia
Original books, original print certificate for the evaporator blocks and the drawings in AutoCAD for the housing and
floor
The spiral freezer is supplied without panels/casing and insulated floor (if desired this can also be provided by Comron)
International BV are regulated).
