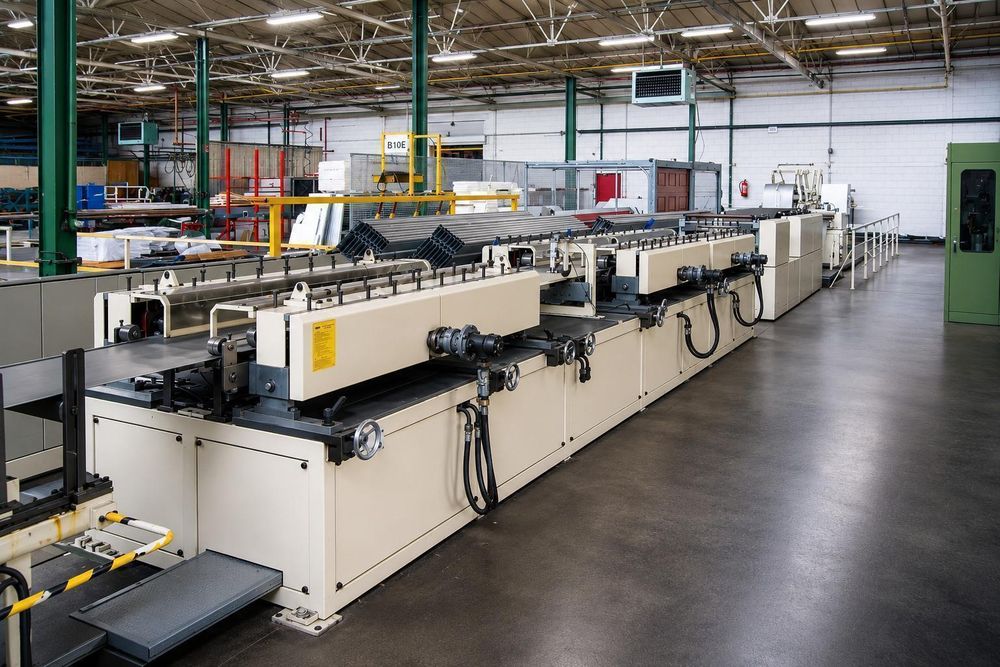

Jensen JENSEN SANDWICH PANEL LINE FOR SECTIONAL GATES Decoiler Capacity: 2 × 5 ton

Hydraulic Double Decoiler
Straightener Working Width: 800 mm
Straightening Rolls: 2 + 3
Additional Pulling Rolls: 2
Roll Forming Section 1: 5 stations
Station Pitch: 500 mm
Shaft Diameter: 70 mm
Roll Forming Section 2: 2 stations
Centre-to-Centre Distance: 150 mm
Adjustable Working Width: 700–850 mm
Roll Forming Section 3: 14 stations
Roll Forming Section 4: 9 stations
Adjustable Working Width
Additional Cassette Units: 2
Hydraulic Flying Shear
Feed Table
Delivery Table
Hydraulic Heated Sandwich Panel Press
Press Model: PMC 157 T
Press Force: 157 ton
Working Pressure: 250 kg/cm2
Maximum Operating Pressure: 250 kg/cm2
Total Load: 157,000 kg
Specific Pressure: 2 kg/cm2
Hydraulic Cylinders: 8
Cylinder Diameter: Ø100 mm
Cylinder Stroke: 450 mm
Opening No. 3: 150 mm
Plate Dimensions: 5200 × 1500 mm
Production Capacity: 6 panels per cycle
Maximum Panel Length: 5100 mm
Panel Width: 600 mm
Maximum Panel Thickness: 40 mm
Heated Plate Press
Maximum Heating Circuit Pressure: 2 kg/cm2 at 90°C
Heating Circuit Capacity: 850 L
Boiler Power: 24 kW
Hydraulic Power Unit: COMET G 60 S/5 + G 60 S/5
Water Pump: Marelli 50 × 32 × 160
Power Supply: 380 V / 50 Hz
Absorbed Electrical Power: 31 kW
Electrical Rating: 35 A / 65
Rack Shaft Diameter: Ø45 mm + Tube Ø63.5 × 10 mm
Rack Gears: 40 × 40 mm, Module 4, Length 600 mm
Bearings: SKF SYV 45 T
Seal: SM472393/1AX
Seal: WRM393440
Seal: I/DWR100
