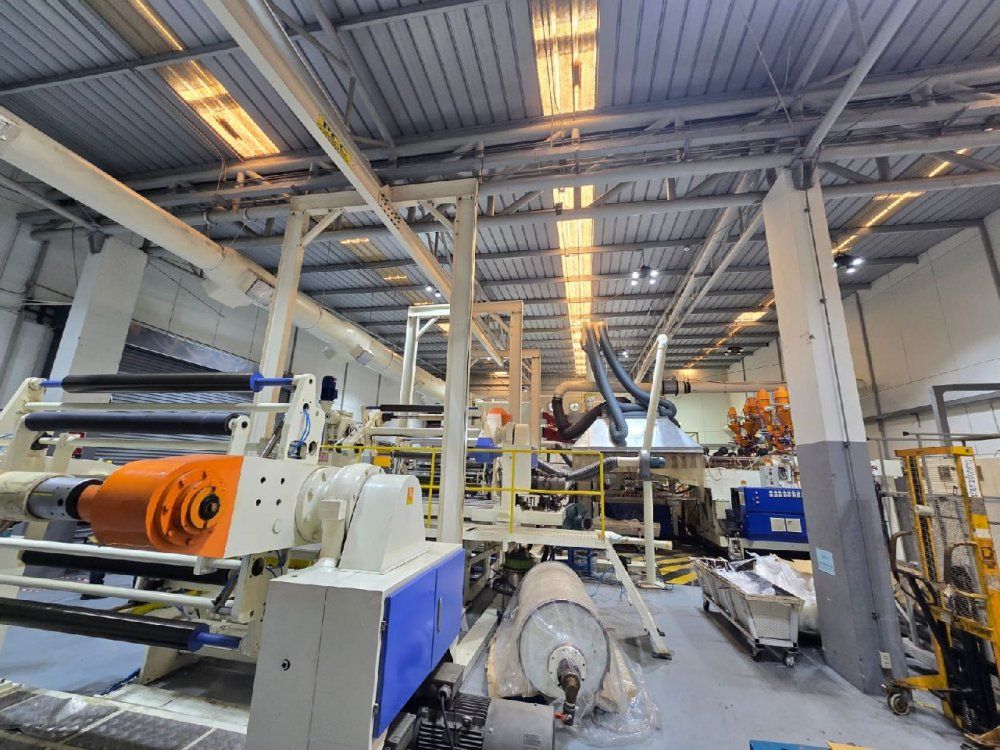

Jiangsu Extrusion lamination machine

Width (mm) 1400
Coating/lamination unit 1 description :
Primer coating unit. coating roller diameter 200mm
Double hood drying, total length 6 meters, stainless steel inside
Max. oven temp- 150 C, heating source - gas, air volume 2x4500m3/h

Coating/lamination unit 2 description :
Co- extrusion unit:
A Extruder capacity 200 kg/h, screw ZB, G 90mm, L/D 35/1, heating zones - 6, mesh diameter 100mm, max. extrusion amount 260kg/h
B Extrude capacity 70 kg/h, screw ZB, L/D 33/1, heating zones- 5, mesh diameter 80mm,max. extrusion amount 150kg/h feeding capacity: 400 kg/h Air gap height 80-150mm
Die head: 3 layers distributor A/A/B; B/A/A; B/A/B; A/A/A Make : Sumitomo max. T-die Lip width - 1450mm
Mould lip gap - 0.4-1.2mm
Block type - Inside blocking
Heating way - electricity
Heating zones -11 Internal deckling system for width reduction.
Final net coating width 600-1300mm 3 rollers lamination
Chill roller diameter 700mm, chill roller length 1400mm,chiller roller mirror surface type, surface roughness RZ 0.5 Silicon rubber roller diameter - 255mm, Silicon rubber roller length 1400mm
Supporting roller diameter 240mm, supporting roller length 140mm
Peel Roller diameter 150mm, Peel roller length 1400mm, Siemens drive motor, warm reducer

Primary unwinder description Turret, max. roll diameter 1200mm,max. roll width 1300mm
Secondary unwinder description Turret, max. roll diameter 800mm,max. roll width 1300mm
Rewinder description turret automatic, max. roll diameter 1200, max roll width 1300mm, tension controlled by Swing roller and AC motor
Speed 200m/min
Product structure / Materials :
Materials : roll paper 30-60gsm
PET films 12µ BOPP 20 µ MPET 12µ MOPP 18-30µ AL foil 7-9µ
Chiller unit - 25P, box type.
Capacity , 75,164 Kcal/hr
Type of Evaporator: Coil/ Inside thread shel and tube type inline edge slitting with 2 rotary knives
