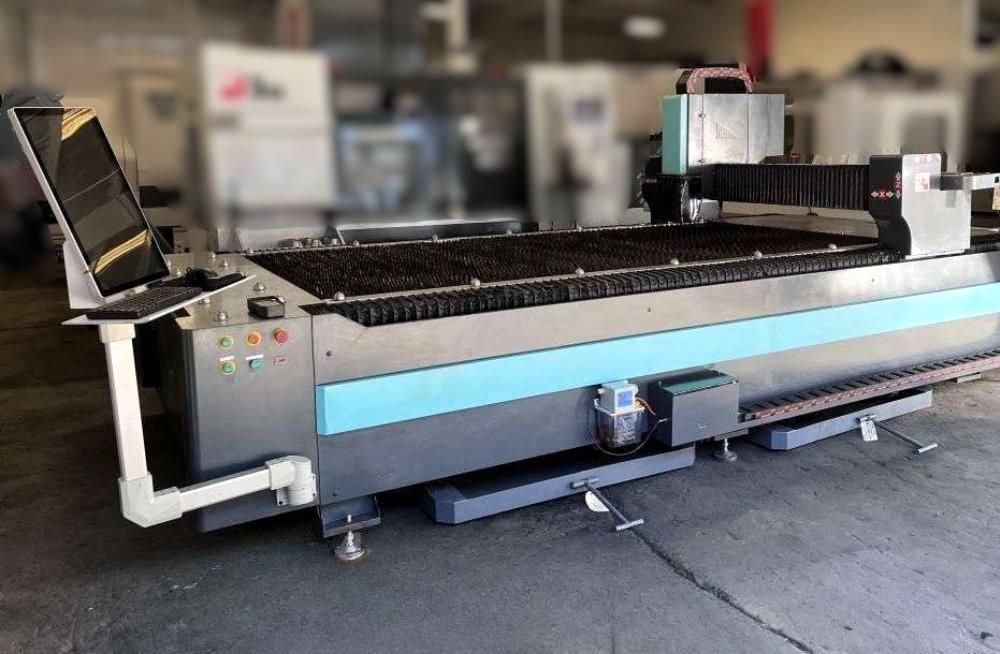

Jinan FS1530L Weihong Control System

JINAN FS1530L
Year 2022

CNC Control yes
Laser Type Fiber Laser
Laser Source Power 2KW
Power 440v / 60HZ / 3-Phase

X-Travel 59.05 inches
Y-Travel 118.11 inches
Z-Travel 7.87 inches

Maximum Speed 3937″ Per Min
Maximum Sheet Thickness (Carbon Steel) 0.629 inches
Maximum Sheet Thickness (Stainless steel) 0.236 inches
Maximum Sheet Thickness (Aluminum) 0.157 inches
Dimensions 177″ x 88″ x 78″ High
Weight 5291 ounces

Equipped With
Jinan Forsun FS1530L 2kW CNC Fiber Laser Cutting 2022 equipped with Weihong Control System, 59.05″ x 118.11″ Effective Cutting Range of Flat Plate, Raytools Fiber
Laser Cutting Head, MP-2000 Industrial Chiller Unit, Servo Motor and Driver, Raycus
Fiber Laser Source, Sawteeth Working Table, Taiwan TBI Ball Screw, Germany Helical
Rack and Pinion, Japan Shimpo Reducer
