JingYing 10 HL Brewhouse

Technical Specifications
Wort Capacity: 10 hl per brew
Configuration: 3-vessel brewhouse (mash/wort tun, lauter tun, whirlpool)
Heating System: Steam-heated
Control System: Semi-automatic PLC (control of pumps, heating, agitators, temperature profiles, recipe selection)
Fermentation: 10 cylindroconical fermentation tanks, 20 hl each (2 bar, cooling jackets, CIP ball, pressure gauge, sampling valves)
Cooling: 6 HP chiller (~4.5 kW mechanical, ~12–18 kW cooling capacity), water-glycol system, range −4 to +10 °C
Steam Generator: Electrically heated, 72 kW (≈1 °C/min for 10 hl water)
Auxiliary Equipment: 30 hl cold water tank (insulated, cooling jacket), 300 kg/h malt mill CIP fittings, Tri-Clamp fittings, hoses, valves, seals, sampling valves
Extension: 10 solenoid valves (one per fermentation tank, automatic individual cooling via a shared glycol ring)

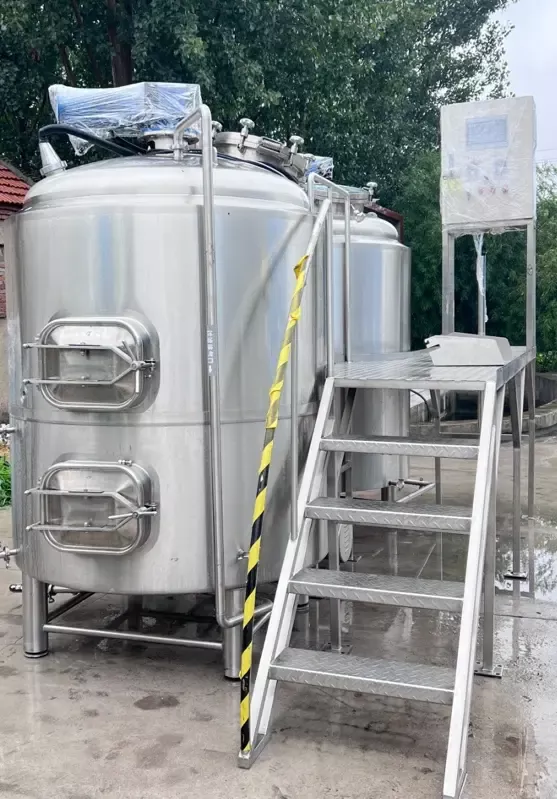

Brewhouse
Mash tun/lauter tun diameter: 1460 mm
Total height including control cabinet/control system: 2860 mm (This is the highest point of the system)
Platform height: 1100 mm (The operator platform can be easily shortened here if necessary)
ZKTs 10 x 20 hl
Diameter: 1510 mm
Total height: 3300 mm

Scope of delivery
Brewhouse | JingYing | 10 hl, 3-vessel tower system | 2022 | Steam-powered, PLC control
10x fermentation tanks | JingYing | ZKT 20 hl | 2022 | 2 bar, cooling jackets
Whirlpool | JingYing | 10 hl | 2022 | With tangential inlet
Cold water tank | JingYing | 30 hl | 2022 | Insulated, with cooling jacket
Malt mill | JingYing | 300 kg/h | 2022
Steam generator | JingYing | Electric, 72 kW | 2022
Chiller | JingYing | 6 HP (~12–18 kW) | 2022 | Water-glycol system -4 to +10 °C
Platform & piping | JingYing | — | 2022 | With pumps, sight glasses, valves, CIP fittings
Accessories | JingYing | — | 2022 | Tri-clamp fittings, hoses, couplings, gaskets
Solenoid valves | JingYing | — | 2022 | 10 pieces, for individual cooling of fermentation tanks
