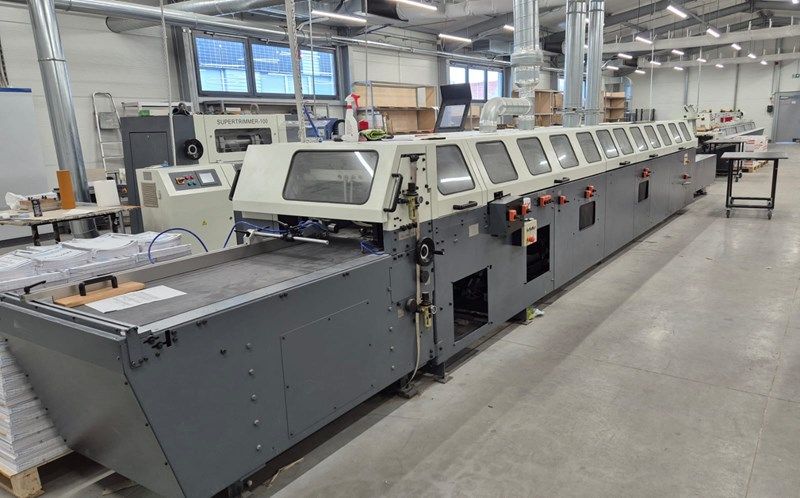

JMD Superbinder 7000 M

Gatherer G 460P- 16 gathering stations, hand feed station, a reject gate for faulty signatures
Sheets size A: 140 x 460 mm, Sheet size B: 120 x 280 mm
In line Max speed: 10.000 cycles/h (1:2 Mode), Offline Max speed: 4800 cycles/h
Automatic signature inspection system on each station to detect miss-feeds, multi-feeds and paper jam.
Superbinder 7000 M: 21 book clamps,4 x spine preparation stations, 2 moveable spine gluing station and a moveable side gluing station,
a stream cover feeding station, 2 x nipping stations, a touch screen and automatic lubrication system.
Max speed: 7000 cycles/h
Book block Length A: 140 x 460 mm
Book block width B: 120 x 300 mm
Book block tickness C: 3-50 mm
Cover length D: 140 x 470
Cover width E 250 x 640 mm
Movable gluing station allowe easy changeover between PUR and EVA in minutes, Nordson 20 kg Premeter
Stream cover feeding station: Cover scoring station
Super trimmer- 100- Touch screen
Horizontal infeed carriage belt from the right, vertical infeed unit, three knife trimmer, gripper delivery, output conveyor
Untrimmed Book Size ( a x b), Max. 445 x 310 (off-line), Min. 85 x 100 mm (Off-line), Max. 420 x 285 mm (In-line), Min. 150 x 100 (In-line),
Trimmed Book size (a x b), Max. 440 x 300 mm(Off-line), Min. 80 x 95 mm (Off-line), Max. 415 x 280 (In-line). Trim Height Min 145 x 95 mm(In-line)
Max. 100 mm, Min. 10 mm
Speed: 15-45 cycles/ min. Precise cutting accuracy with a touch screen control panel.
Could be used as stand alone trimmer or in-line. No-book no-cut control to avoid unnecessary movements
Book stacker- Stacking unit, Book pushing unit, Emergency Exit
