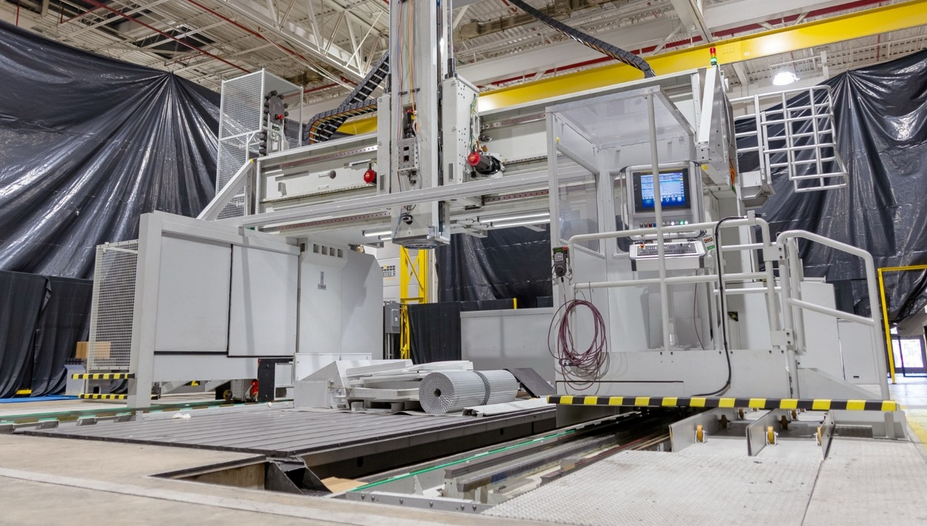

Jobs EVER5 8000X4000 5 Axis

X-axis travel: 314.96"
Y-axis travel: 157.48"
Z-axis travel: 59.06"
X/Y/Z rapid travel speed: 1259 IPM
A-axis rotation: 220° (+/-110°)
C-axis rotation: 400° (+/-200°)
A-axis rotation speed: 60°/sec
A-axis accuracy: +/-0.002°
A-axis repeatability: +/-0.001°
C-axis rotation speed: 60°/sec
C-axis accuracy: +/-0.002°
C-axis repeatability: +/-0.001°
Control: Fanuc 31i-B5 CNC
iHMI 19" display
Dual speed gearbox
Through tool coolant: 725 PSI
Coolant nozzles: 124 PSI
Table size: 314" x 118"
Table depth: 9.8"
Maximum table load: 11023 lbs
Spindle speed: 20 - 15000 rpm
Maximum spindle torque: 2581 lbft continuous
Maximum spindle torque with hydraulic clamping: 10325 lbft
Automatic tool changer capacity: 80 positions
Tool taper: HSK-A100
Maximum tool weight: 55 lbs
Maximum tool length: 13.8"
Automatic head changer: 5 positions

Equipment:
Continuous 5-axis T3K head
15000 rpm Fischer spindle
Heidenhain RON 285
T35C geared fork head
Direct encoder
Universal TUNI 45° head
90° right angle power head
Straight power T3A head
Paper filtration system
2 belt-type chip conveyors
Heidenhain linear scales on X/Y/Z axes
Renishaw RMP60 touch probe
Blum laser tool measuring system
2 high definition cameras
Joystick
Surveillance system
Monitor
Operator platform
Independent cooling units
5-position translating automatic head changer
5 interchangeable heads
1 year warranty included
Installation included
