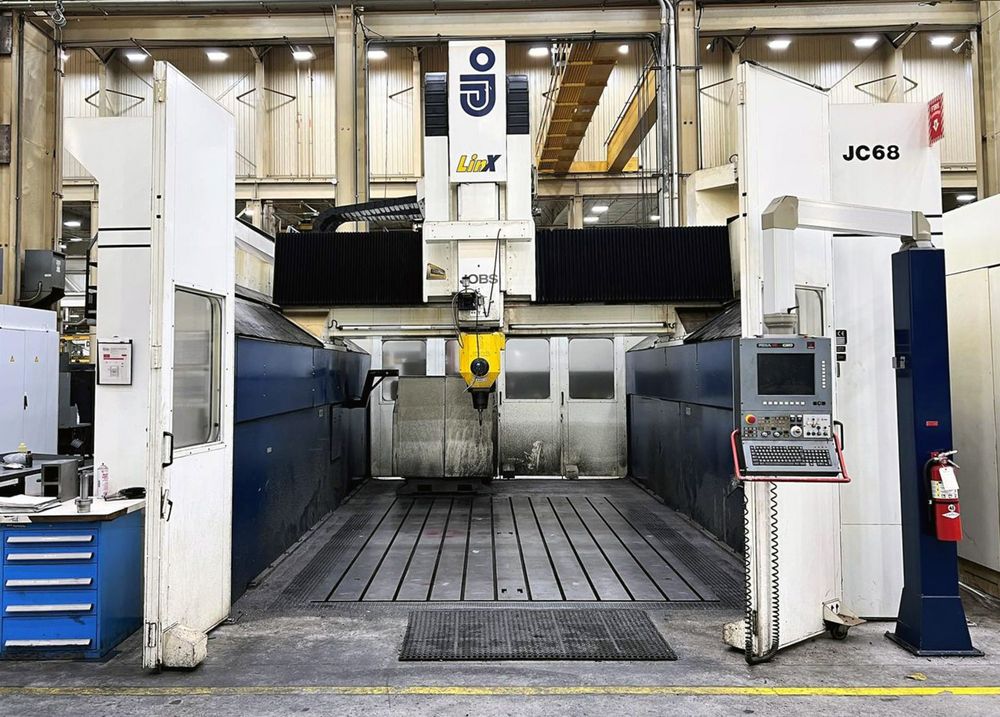

Jobs Linx/S 5-AXIS CNC Gantry Mill Max 24,000 RPM

X-Axis Travel 165” (4,200 mm)
Y-Axis Travel 126” (3,200 mm)
Z-Axis Travel 49” (1,250 mm)
Rotating Angle C-Axis +/- 200°
Rotating Angle B-Axis +90/-100°

Table Size 197” x 118”
Automatic Spindle Changer 3 Spindle Head Positions

HSK 63 Head Spindle Speed 24,000 RPM
HSK 100 Head Spindle Speed 10,000 RPM
HSK 63 Spindle Motor 53 HP
HSK 100 Spindle Motor 45 HP

Automatic Tool Changer 32 Positions
Power Requirements 480V/60HZ/3 Phase
Approx Machine Weight 103,705 lbs (47,080 kg)
Fidia C20 CNC Control
Universal Spindle Head

3 Position Spindle Head Changer
2x HSK 63 Spindle Heads
1x HSK 100 Spindle Head (New in Crate)
Through Spindle Coolant
10 HP Hydraulic Power Unit
32 Position Automatic Tool Changer (16x HSK 100 + 16x HSK 63 Positions)
Chip Conveyor
Fidia HMS Calibration (Head Measuring System) – 2019 Upgrade
C-Axis Rebuilt – 2019
3x Chiller Units – New in 2019
All Available Manuals
