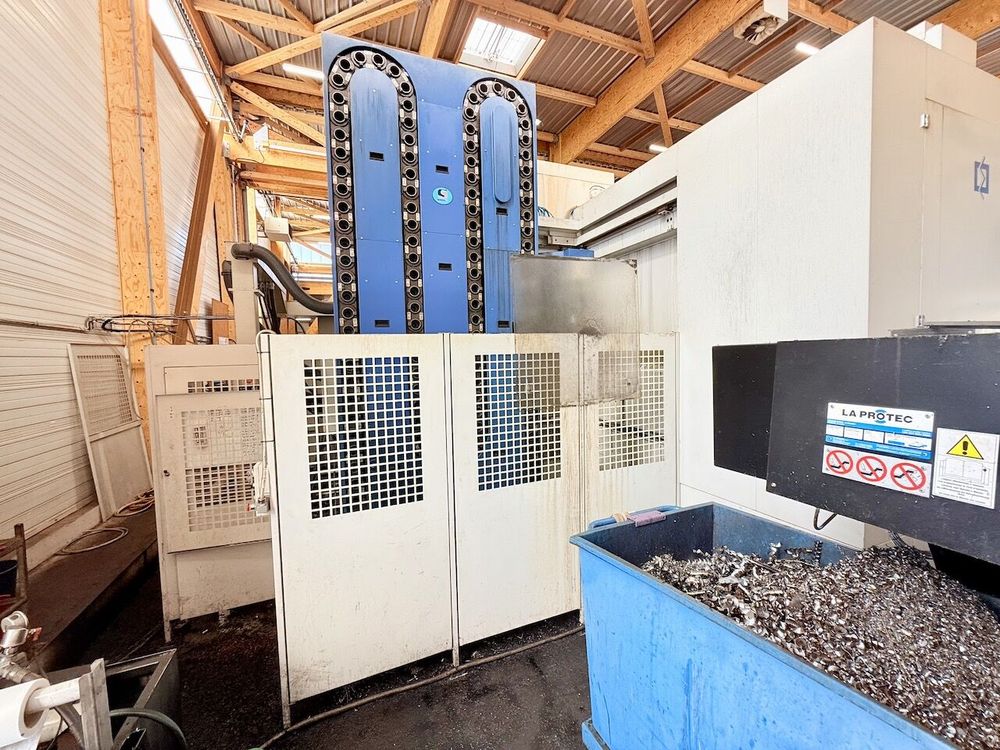

Jobs SACHMAN TRT314 5,000 RPM

X Axis Travel: 3,000 mm
Y Axis Travel: 1,500 mm
Z Axis Travel: 1,600 mm
Rapid Traverse X: 20 m/min
Rapid Traverse Y: 20 m/min
Rapid Traverse Z: 20 m/min
Control: Heidenhain iTNC530 HSCI + HR410
Remote HR410 Handwheel
Ethernet
Linear Roller Guideways
Spindle Power: 35 kW
Spindle Speed: 5,000 RPM
Spindle Taper: ISO 50
2-Range Mechanical Gearbox
Tool Magazine Capacity: 120
Maximum Tool Diameter: 125 mm
Maximum Tool Diameter (Adjacent Pocket Empty): 240 mm
Maximum Tool Length: 500 mm
Maximum Tool Weight: 35 kg
Table Size: 2,000 × 1,600 mm
B Axis Accuracy: 0.001°
Table Rotation Speed: 3 RPM
8 T-Slots, 22 mm, 160 mm Pitch
Automatic Pallet Changer
Pallet Size: 2,000 × 1,600 mm
Pallet Capacity: 8,000 kg
3 Pallets
KOSMO 3 Head
A Axis Resolution: 0.02°
C Axis Resolution: 0.02°
Head Spindle Speed: 5,000 RPM
Head Spindle Power: 35 kW
Head Spindle Taper: ISO 50
40 Bar Through Spindle Coolant
External Low Pressure Coolant
Oil Recirculation Lubrication
High-Pressure Coolant Filtration System
Hydropneumatic Counterbalance
Oil Cooling System
Thermal Head Compensation
Electrical Cabinet Air Conditioner
Machine Work Light
Full Machine Enclosure
2 Front and Rear Chip Conveyors
1 Side Chip Conveyor
Machine Weight: Approx. 65,000 kg
