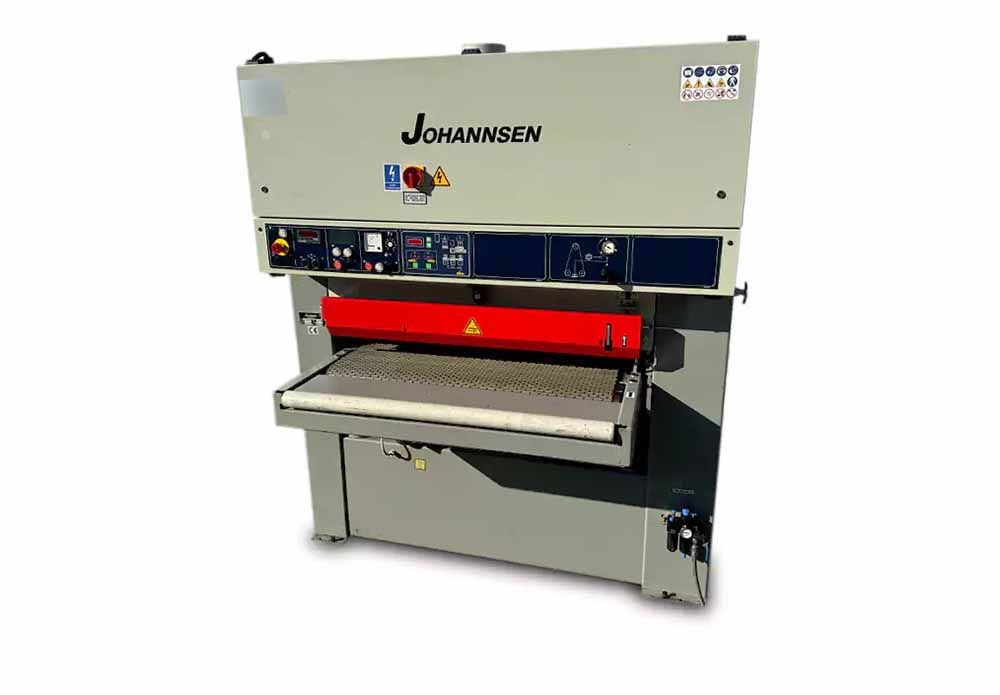

Johannsen BB-COMPACT 1K 1030

Wide belt sander
Max width of the workpiece 1030 mm
max. height of the workpiece 150 mm

- in advance:
metal roller, pressure roller +
metal roller, pressure, split
unit (grooved rubber roller for calibration + shoe + metal roller) +
rubber roller, smooth, slippery +

- from down:
introductory roll
pulling tape +
output roller, sliding
Oscillation of pneumatic straps on photocells +
raising the electric table +
2 types of feed speed +
main engine 11kW
brake +
knob for precise adjustment of grinding height +
feed motor 0,33kW
tabletop lifting motor 0,12kW
working pressure 8bar
diameter of the extraction nozzle 150 mm
dimensions length / width / height 1500x1750x2000mm
weight 965kg
