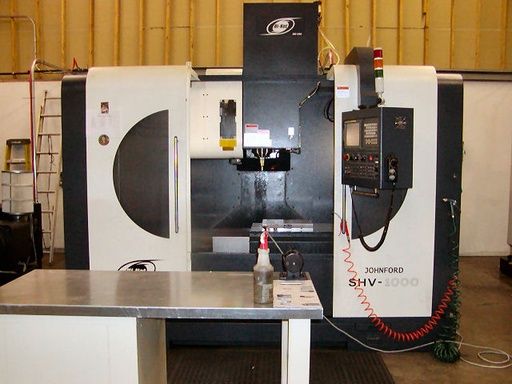

Johnford SHV-1000 3 Axis

JOHNSFORD SHV-1000
2005

X travel 41.3"
Y travel 24"
Z travel 20"
Table size 47.2" x 23.6"
Table load capacity 2640 lbs
Spindle speed 24000 RPM
Spindle motor 31 HP
Spindle taper 40
Tool changer capacity 24
Rapid traverse rate 944 IPM
Control FANUC 18iMB
Servo motor type Alpha 1 series
Lookahead 600 blocks
Processing speed 150,000 blocks/min
Encoder resolution 1,000,000 pulse/rev
Casting material Meehanite FC-30
Ballscrews 1.77" diameter, 10 pitch, class 3, double nut, preloaded
Coolant system high volume
Chip conveyor included
Mist system Uni Mist
Laser tool presetter Blum Micro A-3
Touch probe Blum Micro TC-50
Collet chucks 12 HSK63A balanced to 30,000 RPM
Condition like new
